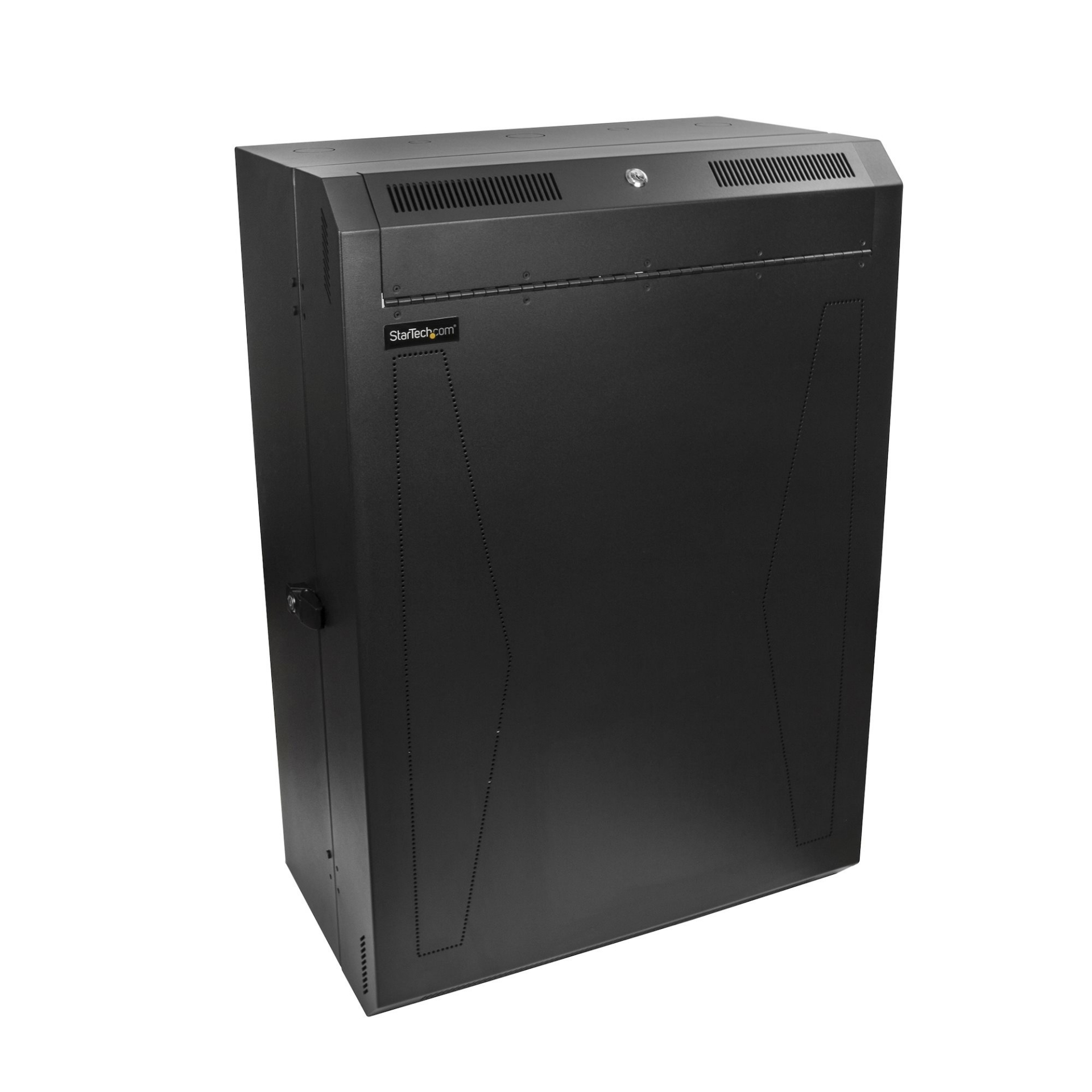

Vertically wall-mount your server or networking equipment in this 8U network cabinet
This 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Rack capacity | 8U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 2-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable back door | No |
| Removable front door | No |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Adjustable mounting rails | Yes |
| Number of fans | 0 fan(s) |
| Cable management | Yes |
| Mounting hole shape | Round |
| Castor wheels | No |
| Width | 675 mm |
| Depth | 383 mm |
| Height | 940 mm |
| Inner width | 64.2 cm |
| Inner depth | 37.6 cm |
| Weight | 36.5 kg |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 1020 mm |
| Products per master (outer) case | 1 pc(s) |
| Nuts included | Yes |
| Number of nuts | 32 |
| Screws included | Yes |
| Number of screws | 32 |
| Mounting kit | Yes |
| Manual | Yes |
| Package width | 720 mm |
| Package depth | 460 mm |
| Package height | 1020 mm |
| Package weight | 39 kg |
| Compliance certificates | CE, RoHS |
