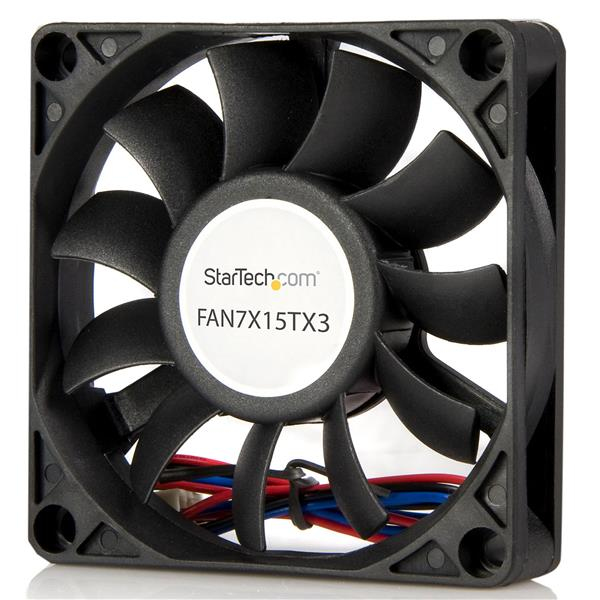

Add additional chassis cooling with a 70mm ball bearing fan
This versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Products specifications
| Width | 15 mm |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 38 g |
| Package width | 96 mm |
| Package depth | 143 mm |
| Package height | 32 mm |
| Package weight | 75 g |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Dimensions (WxDxH) | 10 x 60 x 60 mm |
| Connector(s) | 1 - TX3 Female |
| Rotational speed | 3500 RPM |
| Harmonized System (HS) code | 84733080 |
| Power consumption (typical) | 3.12 W |
| Voltage | 12 V |
| Rated current | 0.18 A |
| Compliance certificates | RoHS |
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Certification | RoHS |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 7 cm |
| Rotational speed (max) | 3500 RPM |
| Noise level (high speed) | 34 dB |
| Maximum airflow | 29.58 cfm |
| Mean time between failures (MTBF) | 50000 h |
| Operating temperature (T-T) | -10 - 70 °C |
