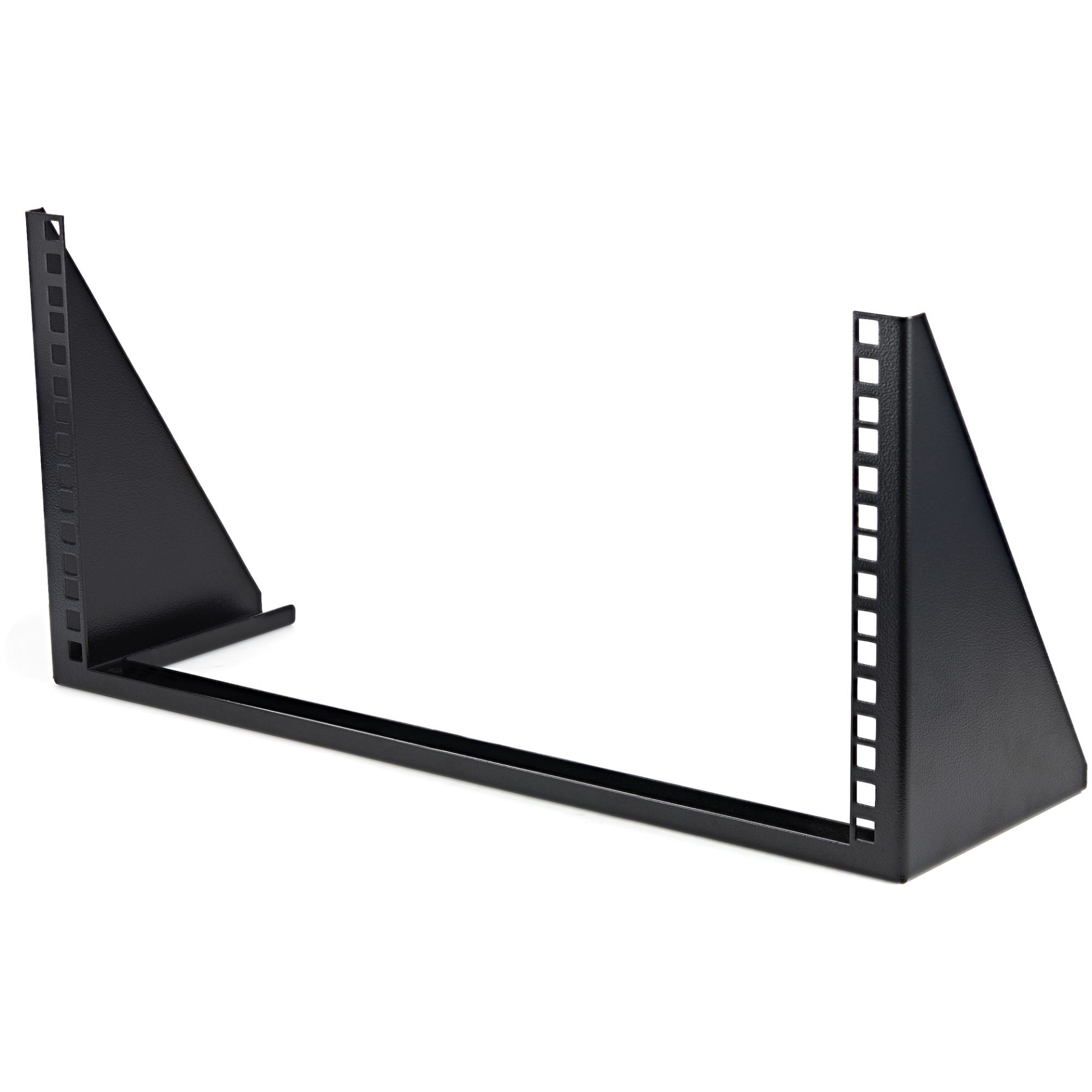

Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack
The RK519WALLV 5U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 5U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
Need additional storage? StarTech.com also offers:
1U 19in Wallmount Bracket
2U 19in Wallmount Bracket
3U 19in Wallmount Bracket
4U 19in Wallmount Bracket
The StarTech.com Advantage
- VERSATILE FUNCTIONALITY: This TAA compliant multi-use low profile 5U vertical rack mount bracket enables servers, networking switches, patch panels or AV equipment to be mounted vertically for easy equipment access where a full rack is not desirable
- STURDY DESIGN: Constructed to EIA-310 19 inch data rack standards, the wall mount patch panel bracket features durable solid steel construction supporting up to 200 lb (90 kg) while ensuring equipment is mounted safely out of the way
- NO ASSEMBLY REQUIRED: The open frame, L-shaped rack kit arrives fully assembled with cage screws for mounting equipment and 1 ½” screws for mounting the rack to wood surfaces; it’s a convenient solution for all your small/home office needs
Products specifications
| Rack capacity | 5U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Mounting hole shape | Square |
| Width | 235 mm |
| Depth | 500 mm |
| Height | 140 mm |
| Weight | 1.4 kg |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 175 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 1 pc(s) |
| Nuts included | Yes |
| Number of nuts | 16 |
| Screws included | Yes |
| Number of screws | 22 |
| Package width | 560 mm |
| Package depth | 175 mm |
| Package height | 260 mm |
| Package weight | 2.2 kg |
| Compliance certificates | CE, RoHS |
