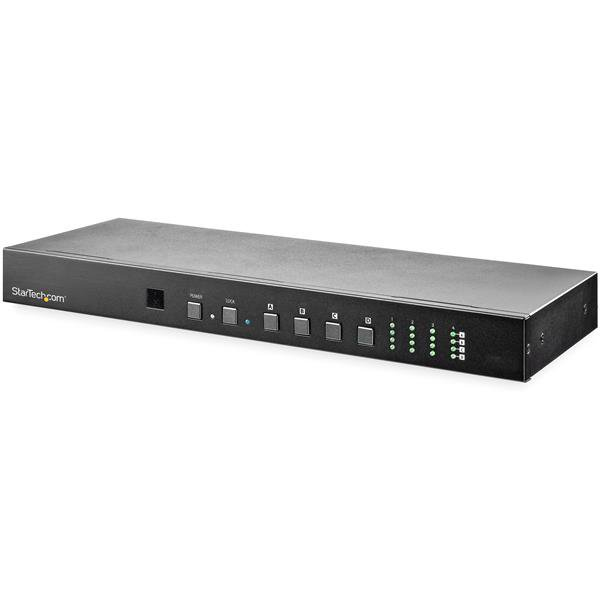

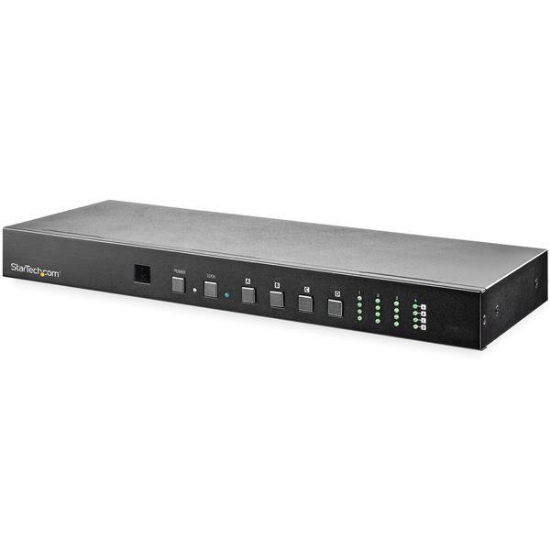

StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz

Be the first to review this product
StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz. Product type: AV matrix switcher, Maximum resolution: 4096 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal, LED indicators: Activity, Power. USB connector type: Mini-USB B. AC input voltage: 100 - 240 V, Input current: 1.5 A, Output current: 2700 mA. Width: 160 mm, Depth: 437 mm, Height: 43 mm
Manufacturer: StarTech
SKU: VS424HD4K60
Vendor: Aspects
HDMI Switcher Box | Rack Mountable | Remote Ethernet & RS232 Control

This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.

True 4K at 60Hz

The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.

Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.

Optimized Functionality

This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.

The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.

Ultimate Convenience

The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).

VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.

The StarTech.com Advantage

- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€606.92 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
HDMI Switcher Box | Rack Mountable | Remote Ethernet & RS232 Control

This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.

True 4K at 60Hz

The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.

Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.

Optimized Functionality

This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.

The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.

Ultimate Convenience

The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).

VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.

The StarTech.com Advantage

- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
Products specifications
Features
Product typeAV matrix switcher
Maximum resolution4096 x 2160 pixels
Bandwidth18 Gbit/s
Audio channels7.1
Supported resolutions4096 x 2160 3840 x 2160 1920 x 1200
Weight & dimensions
Width160 mm
Depth437 mm
Height43 mm
Weight2 kg
Package width292 mm
Package depth525 mm
Package height95 mm
Package weight4 kg
Logistics data
Harmonized System (HS) code85299097
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Power
AC input voltage100 - 240 V
Input current1.5 A
Output current2700 mA
Output voltage24 V
Technical details
Compliance certificatesRoHS
Ports & interfaces
HDMI input ports quantity4
HDMI output ports quantity4
HDMI version2.0
USB connector typeMini-USB B
USB ports quantity1
Ethernet LAN (RJ-45) ports1
RS-232 ports1
Remote (IR) input1
Design
Housing colourBlack
Housing materialMetal
Rack mountingYes
LED indicatorsActivity, Power
Remote control includedYes
CertificationTAA, CE, FCC, REACH
Display
Built-in displayNo
Packaging content
ManualYes
Mounting brackets includedYes
IR receiver includedYes
Included power plug typesANZ, EU, JP, NA, UK
*
*
*
Products specifications
Features
Product typeAV matrix switcher
Maximum resolution4096 x 2160 pixels
Bandwidth18 Gbit/s
Audio channels7.1
Supported resolutions4096 x 2160 3840 x 2160 1920 x 1200
Weight & dimensions
Width160 mm
Depth437 mm
Height43 mm
Weight2 kg
Package width292 mm
Package depth525 mm
Package height95 mm
Package weight4 kg
Logistics data
Harmonized System (HS) code85299097
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Power
AC input voltage100 - 240 V
Input current1.5 A
Output current2700 mA
Output voltage24 V
Technical details
Compliance certificatesRoHS
Ports & interfaces
HDMI input ports quantity4
HDMI output ports quantity4
HDMI version2.0
USB connector typeMini-USB B
USB ports quantity1
Ethernet LAN (RJ-45) ports1
RS-232 ports1
Remote (IR) input1
Design
Housing colourBlack
Housing materialMetal
Rack mountingYes
LED indicatorsActivity, Power
Remote control includedYes
CertificationTAA, CE, FCC, REACH
Display
Built-in displayNo
Packaging content
ManualYes
Mounting brackets includedYes
IR receiver includedYes
Included power plug typesANZ, EU, JP, NA, UK
