Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)

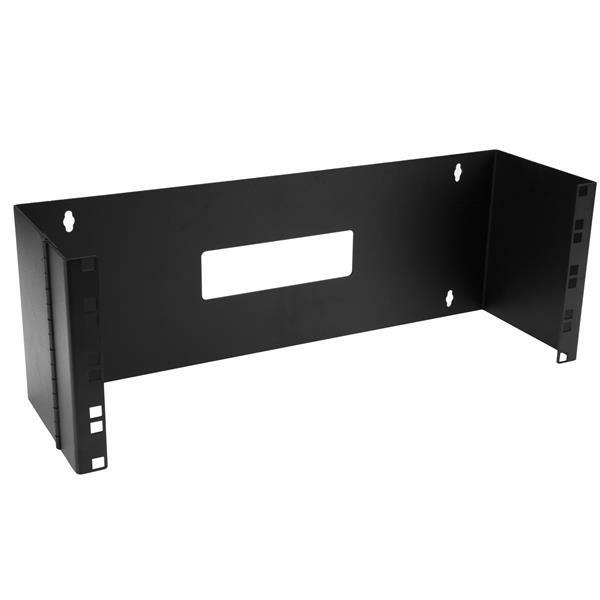

The WALLMOUNTH4 4U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Products specifications
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Maximum weight capacity | 15 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | CE, REACH |
| Width | 501 mm |
| Depth | 152 mm |
| Height | 179 mm |
| Weight | 2.2 kg |
| Mounting depth (max) | 14.8 cm |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Nuts included | Yes |
| Number of nuts | 8 |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 4 |
| Package width | 198 mm |
| Package depth | 520 mm |
| Package height | 187 mm |
| Package weight | 2.7 kg |
| Compliance certificates | RoHS |
