Sorry - this product is no longer available

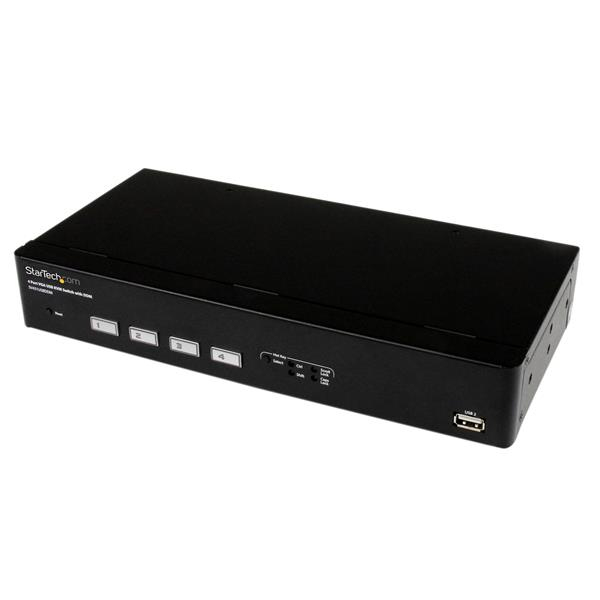

StarTech.com 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables

StarTech.com 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 1920 x 1440 pixels. Product colour: Black, Certification: CE, FCC, TAA, UL, REACH. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 5 V. Compliance certificates: RoHS
Manufacturer: StarTech
SKU: SV431USBDDM
Vendor: Aspects
Control 4 VGA, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time

The SV431USBDDM 4-Port USB VGA KVM Switch lets you control 4 VGA, USB-equipped PCs using a single peripheral set at high-definition VGA resolutions up to 1920x1440.

The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.

For the next level in KVM performance, this VGA KVM switch integrates multi-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€276.92 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Control 4 VGA, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time

The SV431USBDDM 4-Port USB VGA KVM Switch lets you control 4 VGA, USB-equipped PCs using a single peripheral set at high-definition VGA resolutions up to 1920x1440.

The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.

For the next level in KVM performance, this VGA KVM switch integrates multi-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports
Products specifications
Weight & dimensions
Width130 mm
Depth275 mm
Height46 mm
Weight1.2 kg
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width254 mm
Package depth315 mm
Package height132 mm
Package weight3 kg
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Power
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage5 V
Output current2 A
Power consumption (typical)10 W
External power adapterYes
Power plug typeType M
Compatible power plug typesEU, UK, US
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity5
Console portsVGA (D-Sub)
Console USB ports quantity2
USB hubYes
USB 2.0 ports quantity10
USB 2.0 Type-A hub ports quantity2
Audio connectionsNo
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Rack mountingNo
Product colourBlack
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, TAA, UL, REACH
Performance
Maximum resolution1920 x 1440 pixels
Plug and PlayYes
Display
Built-in displayNo
Packaging content
Cables includedUSB, VGA
ManualYes
AC adapter includedYes
Sustainability
Compliance certificatesRoHS
*
*
*
Products specifications
Weight & dimensions
Width130 mm
Depth275 mm
Height46 mm
Weight1.2 kg
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width254 mm
Package depth315 mm
Package height132 mm
Package weight3 kg
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Power
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage5 V
Output current2 A
Power consumption (typical)10 W
External power adapterYes
Power plug typeType M
Compatible power plug typesEU, UK, US
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
VGA (D-Sub) ports quantity5
Console portsVGA (D-Sub)
Console USB ports quantity2
USB hubYes
USB 2.0 ports quantity10
USB 2.0 Type-A hub ports quantity2
Audio connectionsNo
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Rack mountingNo
Product colourBlack
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, TAA, UL, REACH
Performance
Maximum resolution1920 x 1440 pixels
Plug and PlayYes
Display
Built-in displayNo
Packaging content
Cables includedUSB, VGA
ManualYes
AC adapter includedYes
Sustainability
Compliance certificatesRoHS
