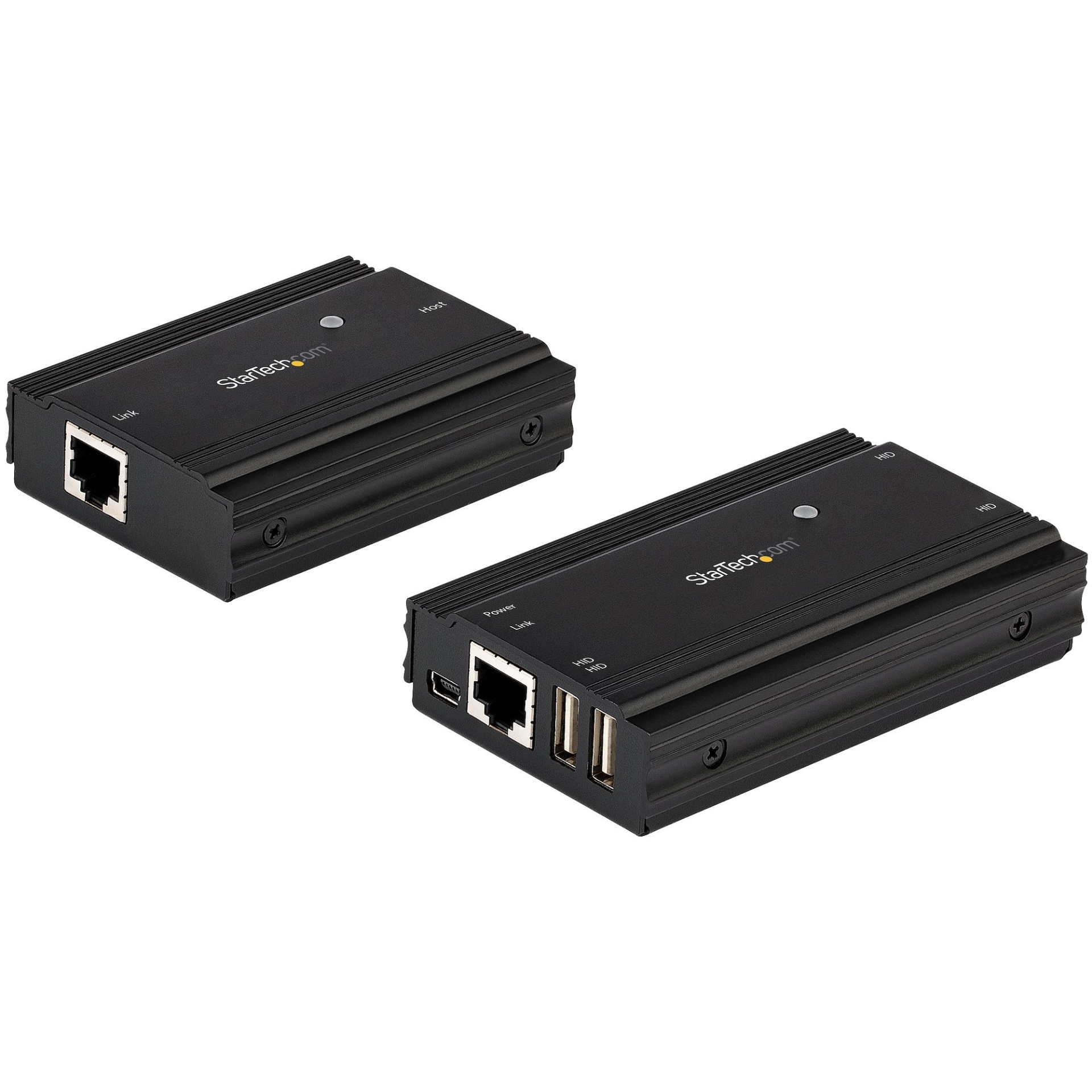

USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | 2-Year Warranty
This USB 2.0 extender enables you to connect up to four USB 2.0 devices over distances of up to 330 feet (100 meters), over standard Cat5e/Cat6/Cat7 Ethernet LAN cabling.
Hi-Speed USB Performance
With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.
Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.
Compatible with USB 2.0/1.1/1.0 Devices
Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
USB2004EXT100 is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
Products specifications
| Width | 60 mm |
| Depth | 100 mm |
| Height | 22 mm |
| Weight | 143 g |
| Package width | 235 mm |
| Package depth | 153 mm |
| Package height | 65 mm |
| Package weight | 716 g |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 323 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 12 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Power consumption (typical) | 10 W |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 2 A |
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Status |
| Rubber feet | Yes |
| Cable types supported | Cat5e, Cat6 |
| Compliance certificates | CE, RoHS |
| USB 2.0 Type-A ports quantity | 4 |
| Mini-USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| Cables included | LAN (RJ-45), USB |
| Quick start guide | Yes |
| AC adapter included | Yes |
