Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable

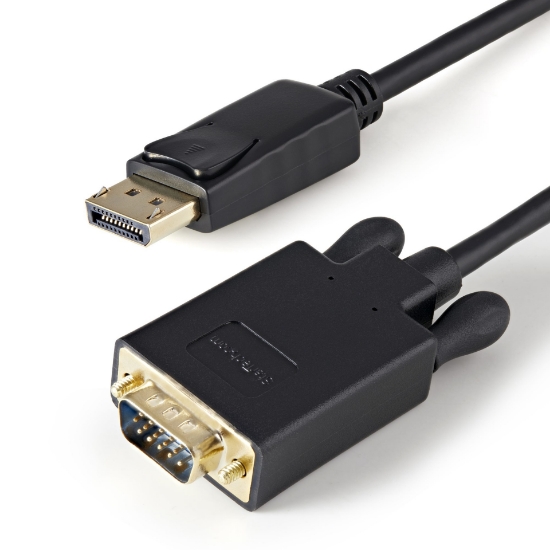

The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.91 m |
| Connector 1 | DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Maximum resolution | 2048 x 1280 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Product colour | Black |
| Chipset | Analogix - 9832 |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Weight | 79 g |
| Width | 40 mm |
| Depth | 915 mm |
| Height | 15 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 220 pc(s) |
| Package width | 160 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 90 g |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Compliance certificates | CE, RoHS |
| Quantity per pack | 1 pc(s) |
