Sorry - this product is no longer available

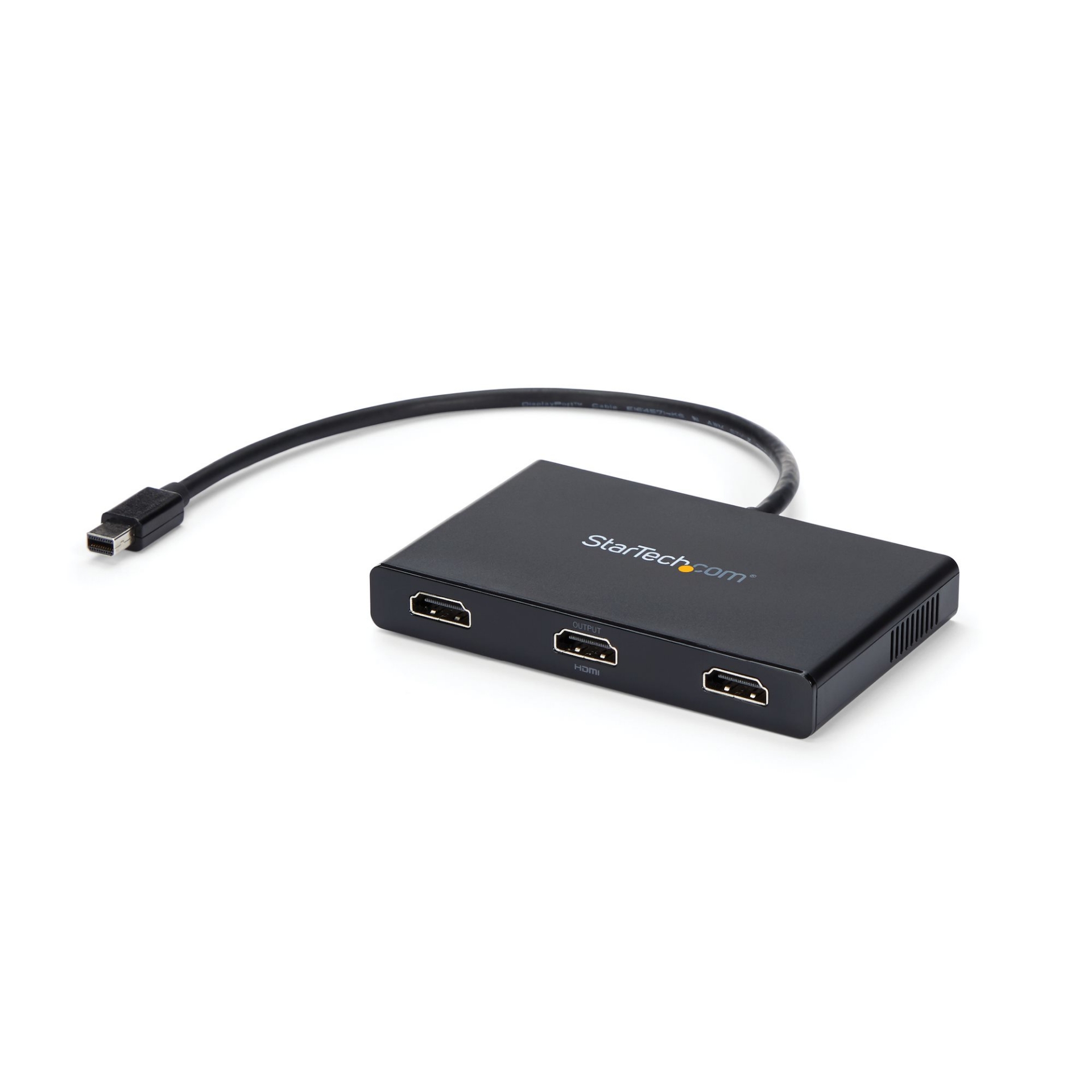

StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI

Be the first to review this product
StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI. Video port type: Mini DisplayPort, Video out: 3x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Plastic. AC input voltage: 100 - 240 V, Input current: 0.5 A, Output voltage: 5 V. Width: 66 mm, Depth: 114 mm, Height: 14 mm. Package width: 151 mm, Package depth: 240 mm, Package height: 63 mm
Manufacturer: StarTech
SKU: MSTMDP123HD
Vendor: Aspects
Use this adapter to connect three independent displays to a single mDP 1.2 port

This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€39.74 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Use this adapter to connect three independent displays to a single mDP 1.2 port

This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
Product colourBlack
Housing materialPlastic
Maximum resolution3840 x 2160 pixels
HD type4K Ultra HD
Maximum refresh rate30 Hz
Supported graphics resolutions1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Plug and PlayYes
Supported video modes1080p, 720p
CertificationCE, FCC, REACH
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Weight & dimensions
Width66 mm
Depth114 mm
Height14 mm
Weight120 g
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width335 mm
Master (outer) case length500 mm
Master (outer) case height220 mm
Products per master (outer) case10 pc(s)
Packaging data
Package width151 mm
Package depth240 mm
Package height63 mm
Package weight514 g
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)50 - 90%
Power
AC input voltage100 - 240 V
Input current0.5 A
Output voltage5 V
Output current3 A
Power consumption (typical)15 W
Technical details
Compliance certificatesRoHS
Ports & interfaces
Video port typeMini DisplayPort
Video out3x HDMI
Video ports quantity3
Packaging content
ManualYes
AC adapter includedYes
Included power plug typesAU, EU, NA, UK
*
*
*
Products specifications
Features
Product colourBlack
Housing materialPlastic
Maximum resolution3840 x 2160 pixels
HD type4K Ultra HD
Maximum refresh rate30 Hz
Supported graphics resolutions1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Plug and PlayYes
Supported video modes1080p, 720p
CertificationCE, FCC, REACH
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Weight & dimensions
Width66 mm
Depth114 mm
Height14 mm
Weight120 g
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width335 mm
Master (outer) case length500 mm
Master (outer) case height220 mm
Products per master (outer) case10 pc(s)
Packaging data
Package width151 mm
Package depth240 mm
Package height63 mm
Package weight514 g
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)50 - 90%
Power
AC input voltage100 - 240 V
Input current0.5 A
Output voltage5 V
Output current3 A
Power consumption (typical)15 W
Technical details
Compliance certificatesRoHS
Ports & interfaces
Video port typeMini DisplayPort
Video out3x HDMI
Video ports quantity3
Packaging content
ManualYes
AC adapter includedYes
Included power plug typesAU, EU, NA, UK
