Universal | EIA/ECA-310 Compliant | Supports up to 200lbs

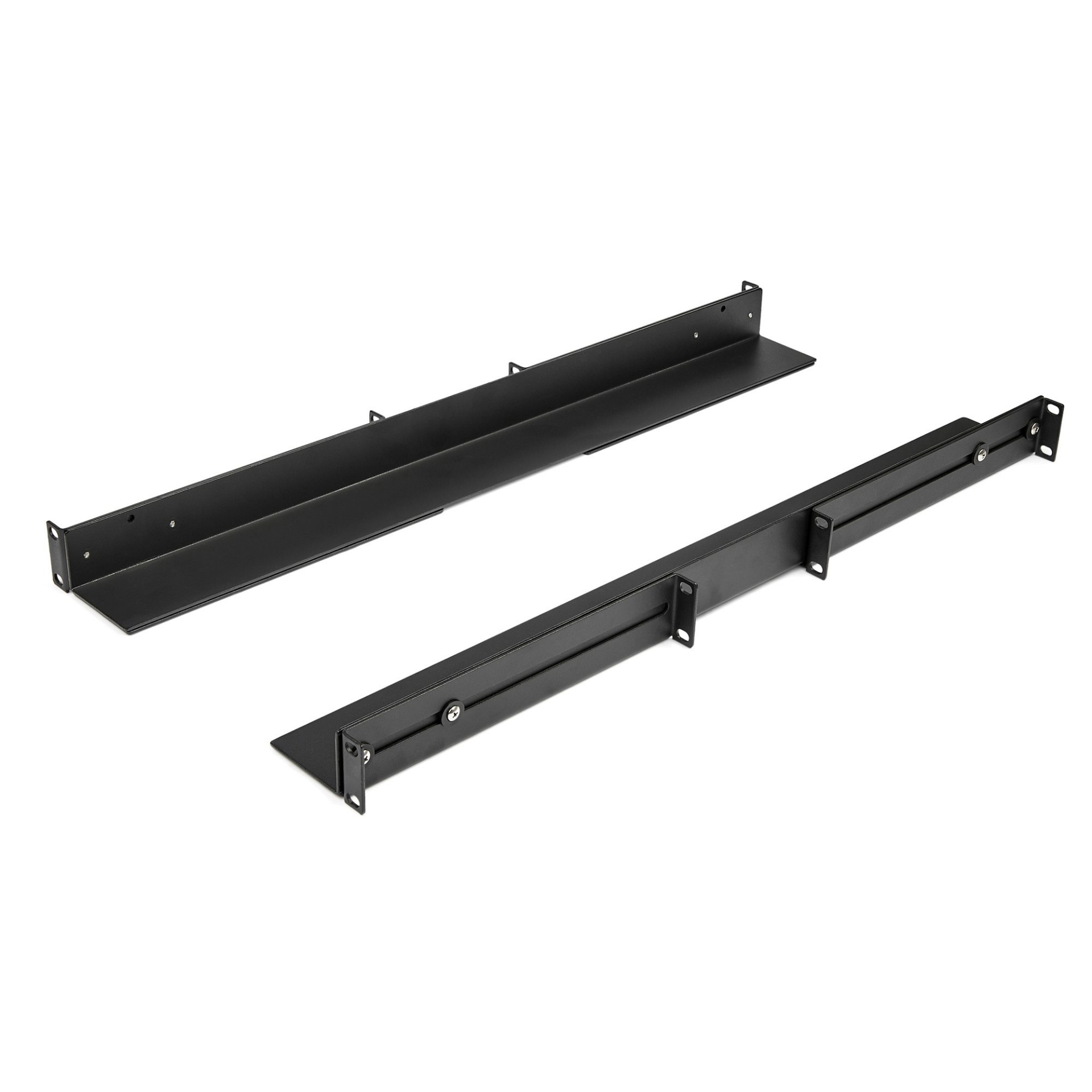

These 1U server rack rails let you mount devices, such as servers or networking equipment, that did not come with rack rails into your 19” 4 post rack. The adjustable server rack rails are also a great solution for mounting OEM equipment such as Dell™, IBM®, HP® or Apple servers.
Universal design mounts to almost any 19" server rack
Adhering to the EIA/ECA-310 standard for 19 inch server rack equipment and accessories, these mounting rails are compatible with most 19 inch server racks. The depth is adjustable for a variety of rack sizes and configurations up to a maximum depth of 36 inches.
Maximum durability
To ensure your equipment is secure, these universal rack mount rails feature cold-rolled steel construction. The durable design can support a weight load of up to 200 lbs (90 kg).
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The UNIRAILS1UB is backed by a lifetime StarTech.com warranty with free technical support.
The StarTech.com Advantage
Products specifications
| Type | Rack rail |
| Product colour | Black |
| Maximum weight capacity | 90.7 kg |
| Compliance industry standards | EIA-310-D |
| Width | 80 mm |
| Depth | 628 mm |
| Height | 45 mm |
| Mounting depth (min) | 61 cm |
| Mounting depth (max) | 91.4 cm |
| Weight | 3.5 kg |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case height | 490 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85389099 |
| Quantity per pack | 2 pc(s) |
| Package width | 220 mm |
| Package depth | 640 mm |
| Package height | 90 mm |
| Package weight | 4 kg |
| Compliance certificates | CE, RoHS |
| Quick installation guide | Yes |
| Screws included | Yes |
| Number of screws | 8 |
| Nuts included | Yes |
| Number of nuts | 8 |
| Washers included | Yes |
| Number of washers included | 8 |
