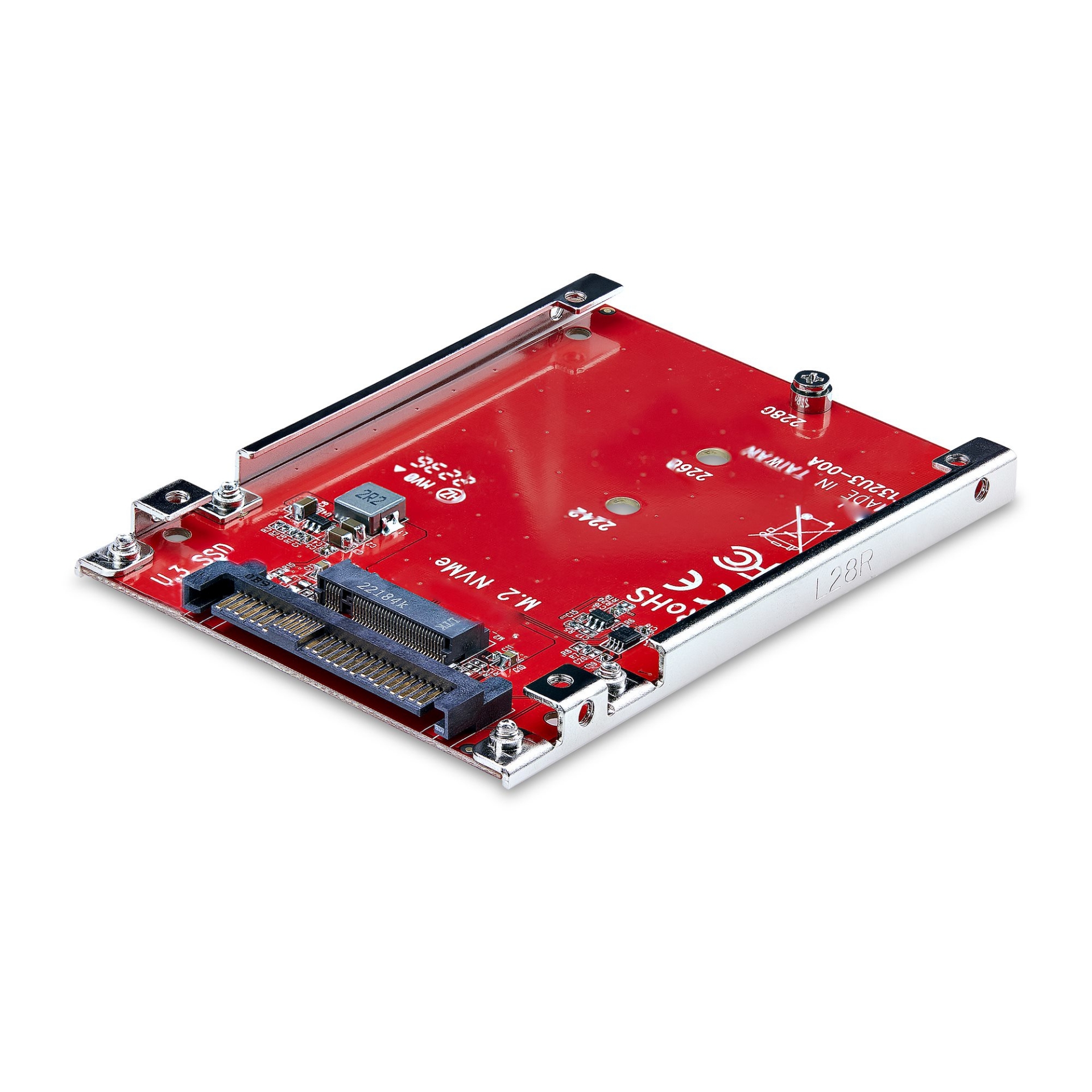

Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bay
Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
Products specifications
| S.M.A.R.T. support | Yes |
| Plug and Play | Yes |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 37 g |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 381 mm |
| Master (outer) case height | 312 mm |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Output voltage | 3.3 V |
| Output current | 5 A |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Host interface | U.3 |
| Output interface | M.2 |
| Internal | Yes |
| Product colour | Red |
| Purpose | PC |
| Mean time between failures (MTBF) | 12368734 h |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
