Make a right-angled connection to your SATA drive, for installation in tight spaces

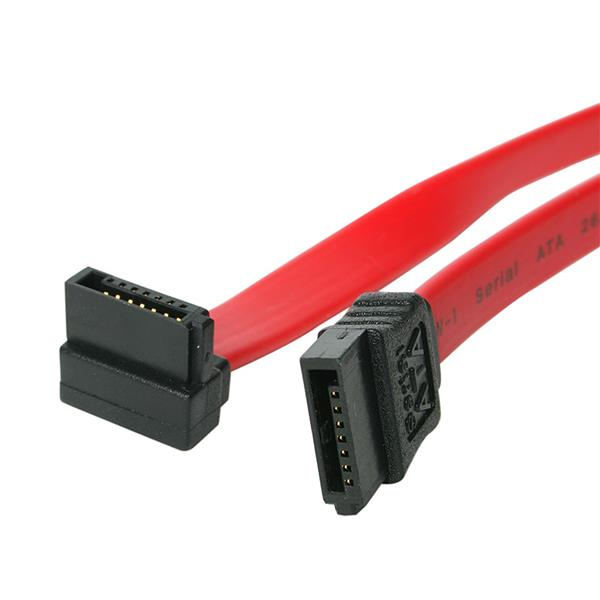

The SATA18RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 18-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.
The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.
Constructed of only top quality materials and designed for optimum performance and reliability this 18" SATA cable is backed by our lifetime warranty.
As an alternative, StarTech.com also offers an SATA18LA1" text="18in Left Angle SATA cable (SATA18LA1), which provides the same simple installation as this right angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.
The StarTech.com Advantage
- Right-angled SATA connector easily fits into hard to reach areas and tight spaces, providing flexibility to position your SATA drive as needed within your system case
- Features a thin cable design, which helps reduce clutter and increase airflow within the computer/server case, for optimum system performance
- Backed by StarTech.com lifetime warranty, ensuring a dependable connection
Products specifications
| Cable length | 0.457 m |
| Cable type | SATA III |
| Connector 1 | SATA 7-pin |
| Connector 2 | SATA 7-pin |
| Connector 1 form factor | Right |
| Connector 2 form factor | Straight |
| Connector gender | Female/Female |
| Product colour | Red |
| Weight | 14 g |
| Harmonized System (HS) code | 84733080 |
| Package width | 90 mm |
| Package depth | 125 mm |
| Package height | 10 mm |
| Package weight | 18 g |
| Compliance certificates | RoHS |
| Connector(s) | SATA Data 7 pin Female / SATA Data 7 pin Female |
