Connect your VGA monitor with the highest quality connection available

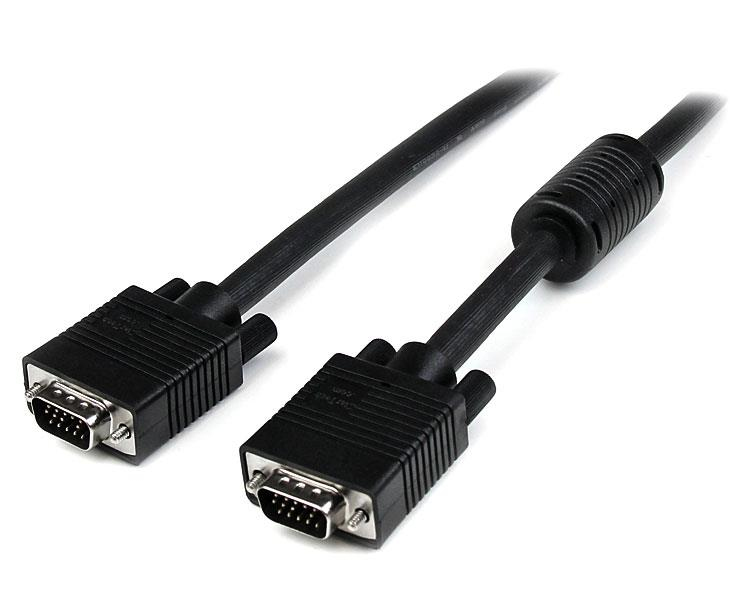

The MXTMMHQ15M High Resolution VGA Cable (15-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores to help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
Products specifications
| Cable length | 15 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable rating | CMG (CM) |
| Number of conductors | 14 |
| Impedance | 75 Ω |
| Plug and Play | Yes |
| Weight | 1.4 kg |
| Harmonized System (HS) code | 84733080 |
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 61 mm |
| Package weight | 1.4 kg |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
| Certification | CE, REACH |
