StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux

Be the first to review this product
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 277385 h. Chipset: Asix AX99100, Baud rate: 921.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 150 mm
Manufacturer: StarTech
SKU: PEX1S953LP
Vendor: Aspects
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

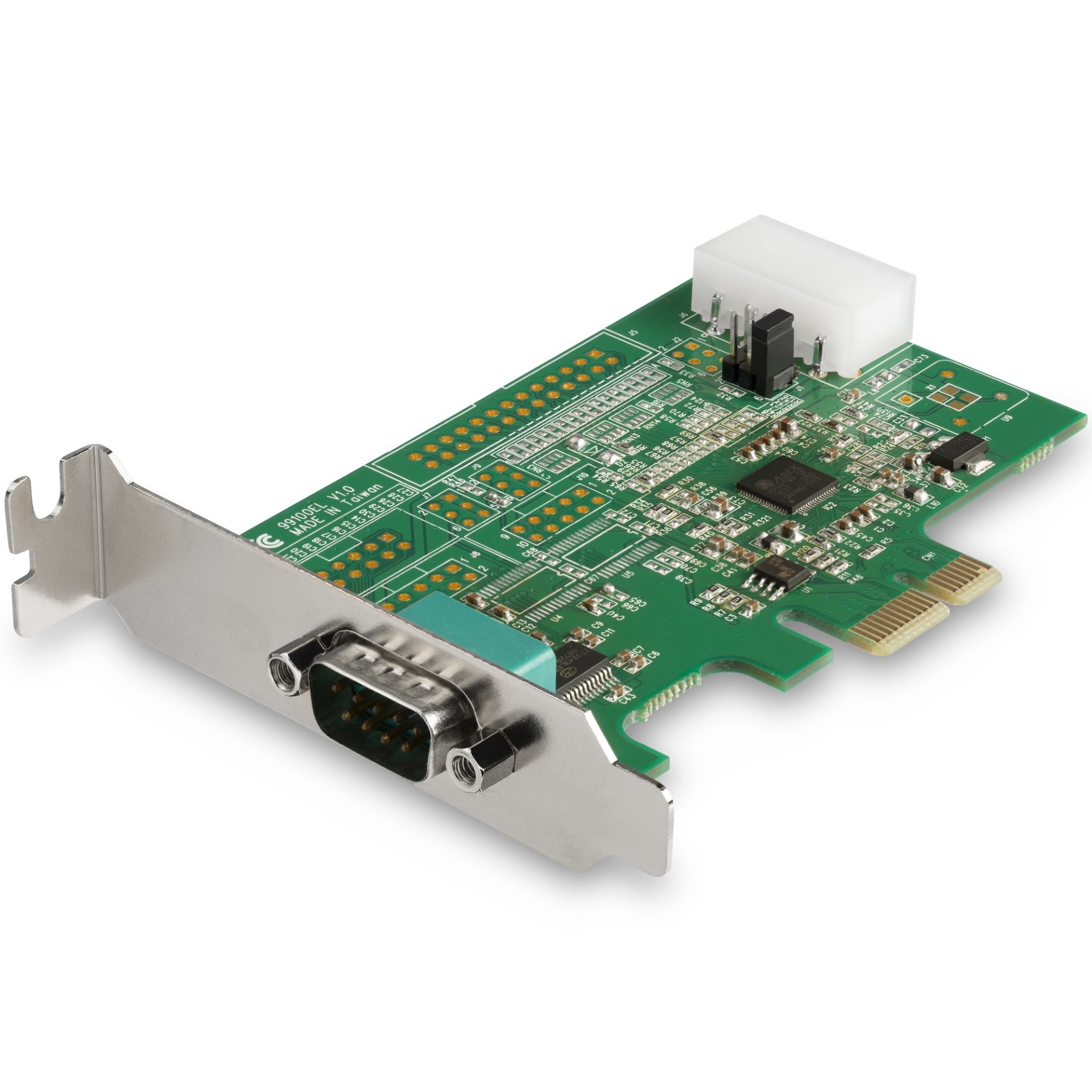

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€45.61 incl tax
Lowest price in the last 30 days: $45.61
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
ChipsetAsix AX99100
Baud rate921.4 Kbit/s
FIFO (First In, First Out)256 B
Data bits5, 6, 7, 8, 9
Stop bits1, 1.5, 2
Flow control supportYes
Parity bitEven, Mark, No, Odd, Space
Flow Control typeNo, RTS/CTS, XON/XOFF
Weight & dimensions
Width67 mm
Depth98 mm
Height150 mm
Weight44 g
Logistics data
Harmonized System (HS) code84733020
Products per master (outer) case75 pc(s)
Master (outer) case width360 mm
Master (outer) case length685 mm
Master (outer) case height315 mm
Packaging data
Quantity1
Mounting brackets includedYes
ManualYes
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight112 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)20 - 80%
Technical details
Sustainability complianceYes
Compliance certificatesCE, RoHS
Ports & interfaces
Host interfacePCIe
Output interfaceSerial
Expansion card standardPCIe 1.1
Serial ports quantity1
Serial interface typeRS-232
Peripheral (Molex) power connectors (4-pin)1
Design
InternalYes
Product colourGreen
Mean time between failures (MTBF)277385 h
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
*
*
*
Products specifications
Features
ChipsetAsix AX99100
Baud rate921.4 Kbit/s
FIFO (First In, First Out)256 B
Data bits5, 6, 7, 8, 9
Stop bits1, 1.5, 2
Flow control supportYes
Parity bitEven, Mark, No, Odd, Space
Flow Control typeNo, RTS/CTS, XON/XOFF
Weight & dimensions
Width67 mm
Depth98 mm
Height150 mm
Weight44 g
Logistics data
Harmonized System (HS) code84733020
Products per master (outer) case75 pc(s)
Master (outer) case width360 mm
Master (outer) case length685 mm
Master (outer) case height315 mm
Packaging data
Quantity1
Mounting brackets includedYes
ManualYes
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight112 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)20 - 80%
Technical details
Sustainability complianceYes
Compliance certificatesCE, RoHS
Ports & interfaces
Host interfacePCIe
Output interfaceSerial
Expansion card standardPCIe 1.1
Serial ports quantity1
Serial interface typeRS-232
Peripheral (Molex) power connectors (4-pin)1
Design
InternalYes
Product colourGreen
Mean time between failures (MTBF)277385 h
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
