Promote content in any storefront window

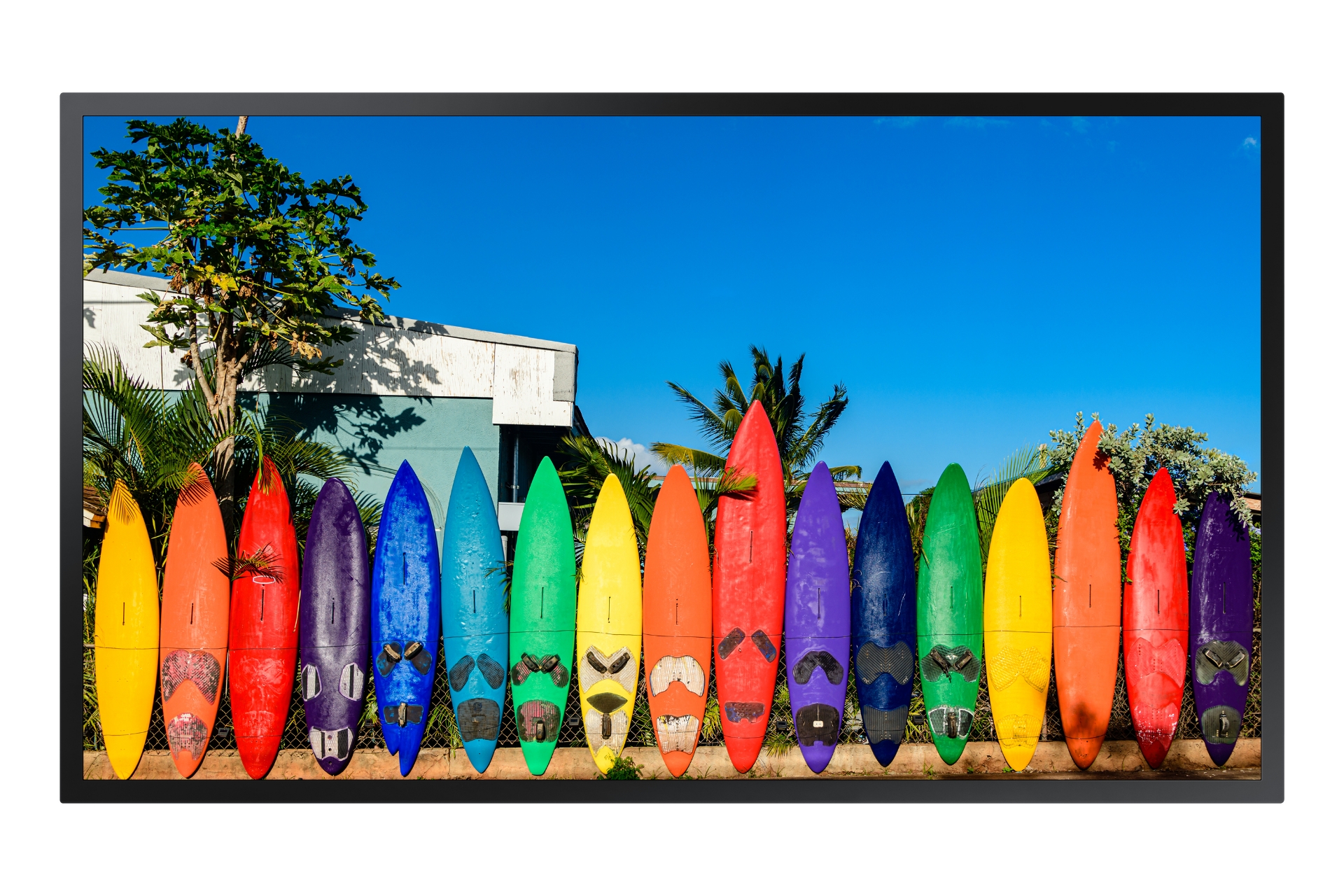

Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.
Foster brilliant presentation for all
Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer
Marvel at the lifelike colour expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.
Modernise space with slim design
Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.
Streamline content management
Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.
Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.
Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.
Products specifications
| Wall mountable | Yes |
| Display width | 1253.4 mm |
| Display depth | 54.5 mm |
| Display height | 724.2 mm |
| Display weight | 23.1 kg |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video out | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Package width | 1420 mm |
| Package depth | 178 mm |
| Package height | 879 mm |
| Package weight | 29.1 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Power consumption (typical) | 450 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Certification | EMC Class A, Safety 60950-1 |
| Audio out (mini jack) | Yes |
| Audio in (mini jack) | No |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.91 cm |
| Bezel width (side) | 1.91 cm |
| Bezel width (top) | 1.91 cm |
| Bezel colour | Dark Blue Gray |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Panel type | ADS |
| Display diagonal | 139.7 cm (55") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3000 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.315 x 0.315 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Haze rate | 1% |
| Pixel frequency (max) | 594 MHz |
| RGB colour space | NTSC |
| Colour gamut | 72% |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 5.0 |
