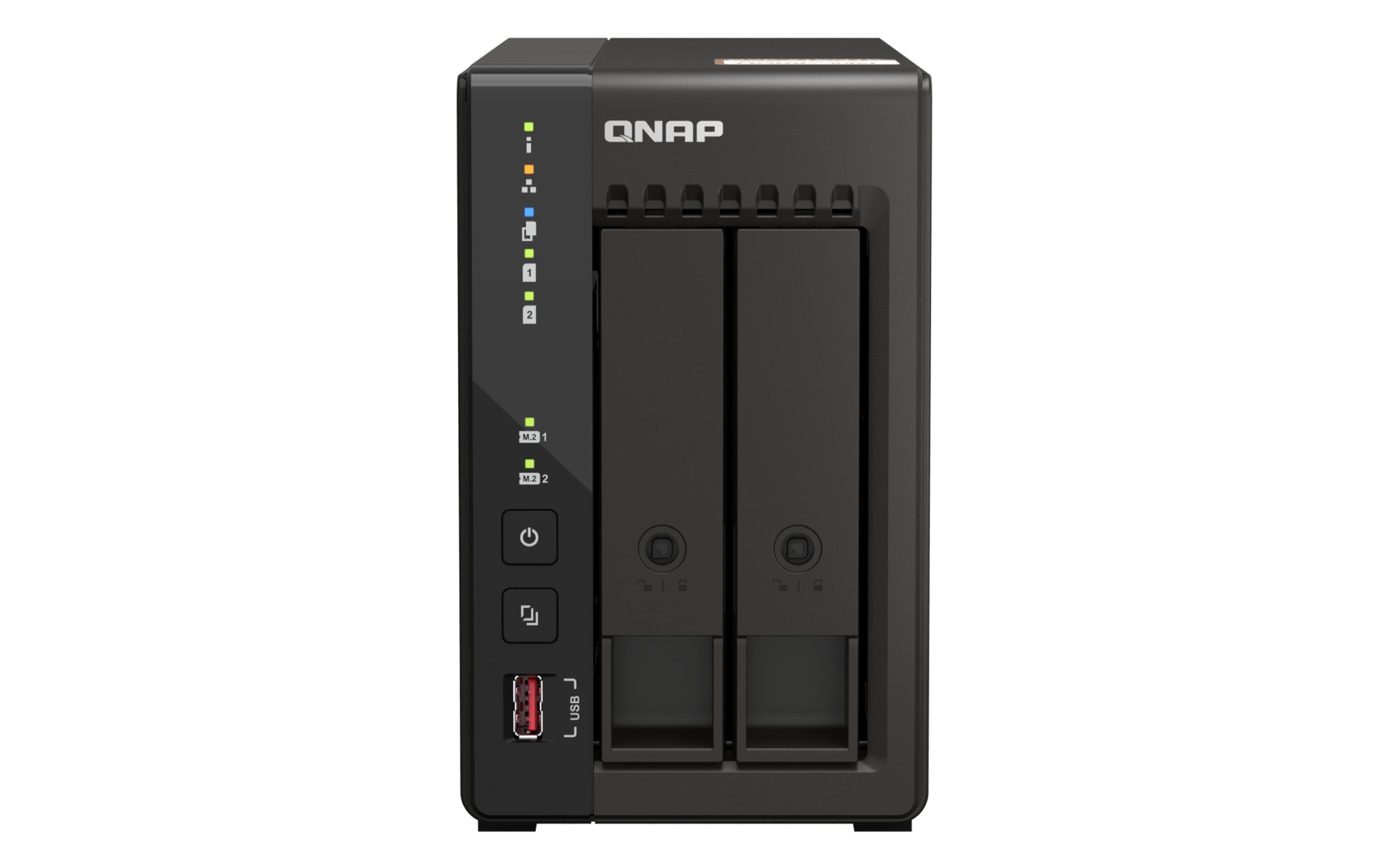

QVP-21C
2-bay high-performance NVR for SMBs and SOHO
The QVP-21C QVR Pro appliance is a tower-based network surveillance server with an Intel® Celeron® quad-core processor that supports eight free IP camera channels and up to sixteen IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-21C fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.
QVP-21C vs. other NAS-based surveillance systems. What’s the difference?
In a conventional NAS-based surveillance system, surveillance is just one of many applications available to users. As all these applications need to share NAS system resources and storage space, surveillance performance could be impacted. The QVP-21C QVR Pro Appliance overcomes this by providing dedicated storage space and reserving full system resources for surveillance, delivering the utmost performance to fulfill professional surveillance system requirements. The QVP-21C also comes with built-in camera channel licenses and essential applications to enable local installation without requiring an internet connection. Simply install the hard drives and power up the QVP-21C to start the installation process.
Products specifications
| Width | 102 mm |
| Depth | 220.5 mm |
| Height | 169.2 mm |
| Weight | 1.57 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Power consumption (typical) | 60 W |
| AC input voltage | 100 - 240 V |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| DHCP server | Yes |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| LED indicators | Yes |
| Type | Storage server |
| Device class | Home & Home Office |
| Backup function | Yes |
| Buzzer | Yes |
| Noise level | 15.4 dB |
| Video input channels | 8 channels |
| Snapshot | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| S.M.A.R.T. support | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J6412 |
| Processor boost frequency | 2.6 GHz |
| Processor cores | 4 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 MB |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5+HS, 5, 6, 10+HS, 10, JBOD |
| Online RAID migration | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 2 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Operating system installed | QVR Pro |
