Sorry - this product is no longer available

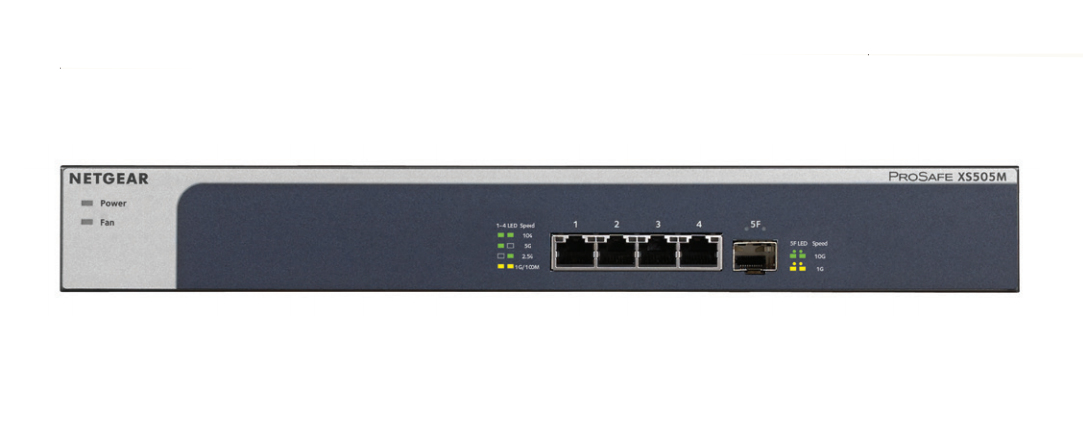

NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver

Be the first to review this product
NETGEAR XS505M, Unmanaged, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting
Manufacturer: Netgear
SKU: XS505M-100EUS
Vendor: Aspects
NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€366.53 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting
Products specifications
Weight & dimensions
Width328 mm
Depth169 mm
Height43.2 mm
Weight1.38 kg
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation85.3 BTU/h
Power
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.5 A
Power consumption (typical)12.25 W
Power consumption (max)22.5 W
Certificates
Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity1
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Full duplexYes
Flow control supportYes
Data transmission
Switching capacity100 Gbit/s
MAC address table2000 entries
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory128 MB
Design
Rack mountingYes
Product colourGrey, Silver
LED indicatorsYes
SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Performance
Mean time between failures (MTBF)1093237 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
*
*
*
Products specifications
Weight & dimensions
Width328 mm
Depth169 mm
Height43.2 mm
Weight1.38 kg
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation85.3 BTU/h
Power
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.5 A
Power consumption (typical)12.25 W
Power consumption (max)22.5 W
Certificates
Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity1
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Full duplexYes
Flow control supportYes
Data transmission
Switching capacity100 Gbit/s
MAC address table2000 entries
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory128 MB
Design
Rack mountingYes
Product colourGrey, Silver
LED indicatorsYes
SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Performance
Mean time between failures (MTBF)1093237 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
