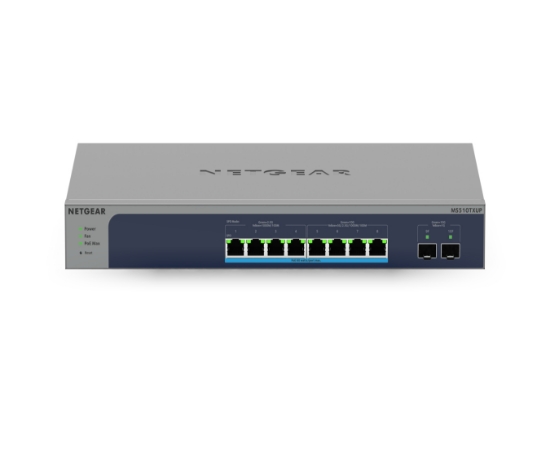

The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port.
MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Products specifications
| Width | 330 mm |
| Depth | 206 mm |
| Height | 43 mm |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Power supply included | Yes |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Switching capacity | 140 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Rack mounting | Yes |
| Product colour | Grey, Blue |
| LED indicators | Activity, Power, Speed |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 60 W |
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) ingress | 100 |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSL/TLS |
| Loop protection | Yes |
| Management protocols | SNMP v1/v2c,SNMP v3 |
| Multicast support | Yes |
