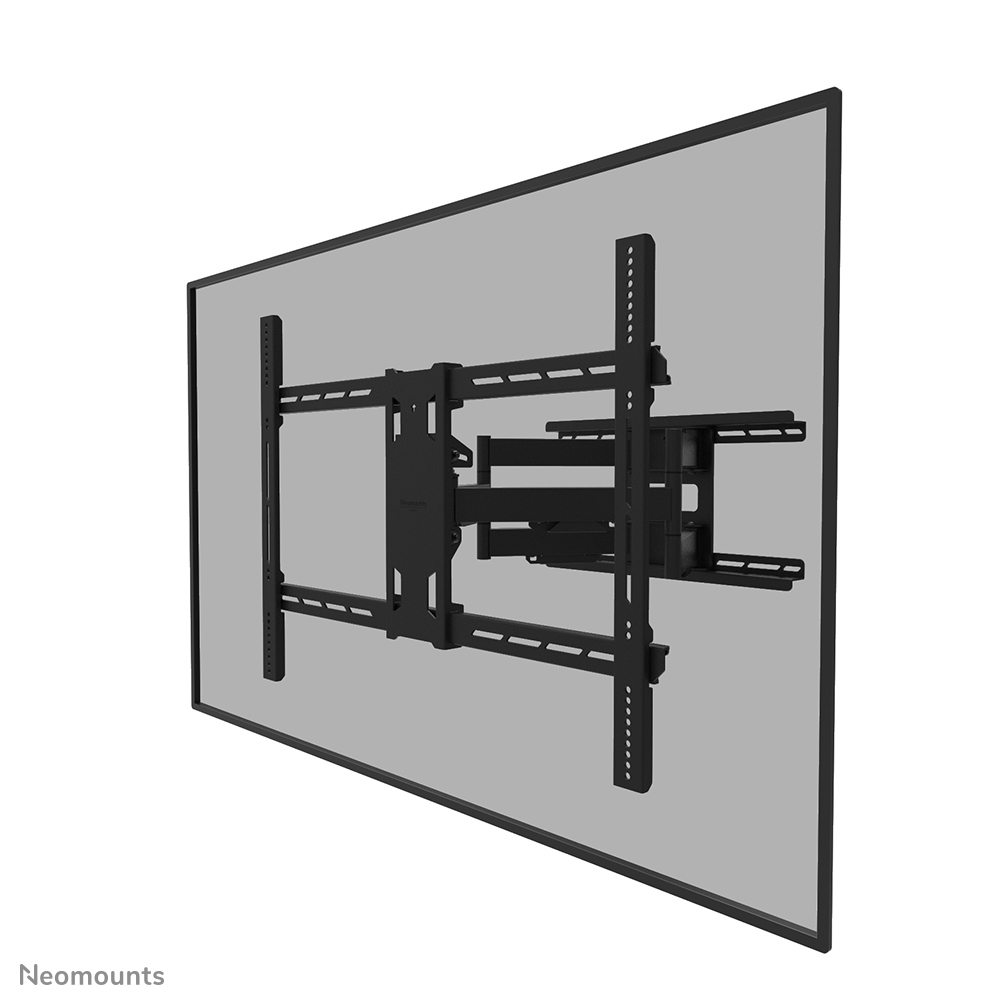

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Products specifications
| Width | 880 mm |
| Depth | 82 mm |
| Height | 630 mm |
| Weight | 20.4 kg |
| Warranty period | 5 year(s) |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 100 mm |
| Master (outer) case height | 950 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 20.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 20 pc(s) |
| Package width | 450 mm |
| Package depth | 100 mm |
| Package height | 950 mm |
| Package net weight | 22 kg |
| Package weight | 22 kg |
| Housing material | Steel |
| Product colour | Black |
| Accepts padlock | No |
| Mounting kit | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Maximum weight capacity | 125 kg |
| Minimum screen size | 139.7 cm (55") |
| Number of displays supported | 1 |
| Maximum screen size | 2.79 m (110") |
| Suitable for TV | Yes |
| Mounting type | Wall |
| Minimum VESA mount | 300 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 400 x 400,400 x 600,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,350 x 350,400 x 200,500 x 500 |
| Distance to the wall (min) | 8.2 cm |
| Distance to the wall (max) | 70.3 cm |
