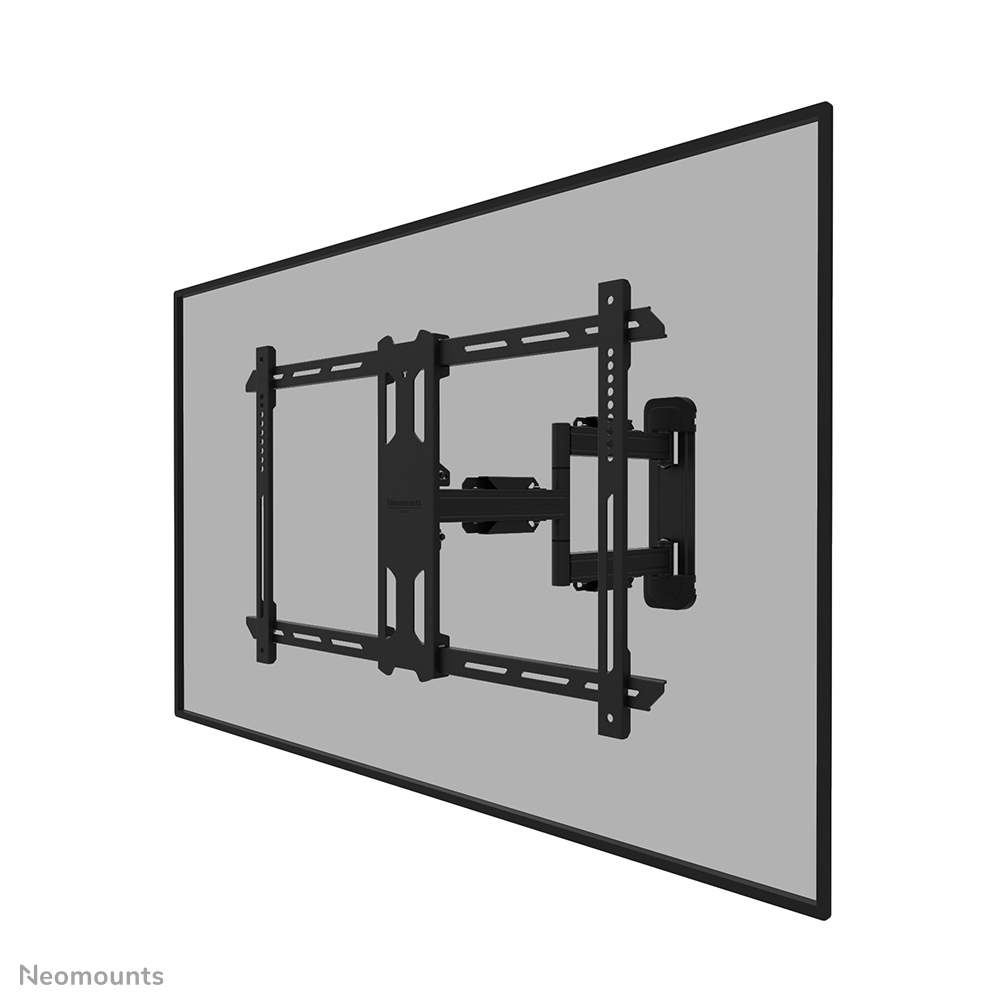

The Neomounts WL40S-850BL16 LEVEL is a full motion wall mount for flat screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400mm.
The WL40S-850BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Products specifications
| Width | 710 mm |
| Depth | 47 mm |
| Height | 436 mm |
| Weight | 6.2 kg |
| Master (outer) case width | 756 mm |
| Master (outer) case length | 198 mm |
| Master (outer) case height | 386 mm |
| Master (outer) case gross weight | 24.1 kg |
| Master (outer) case net weight | 18.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 60 pc(s) |
| Package width | 736 mm |
| Package depth | 366 mm |
| Package height | 60 mm |
| Package weight | 7.8 kg |
| Country of origin | China |
| Package net weight | 7.8 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Product colour | Black |
| Housing material | Steel |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle | 40° |
| Swivel angle range | -45 - 45° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 55.5 cm |
| Distance to the wall (min) | 4.7 cm |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,400 x 200 |
| Mounting type | Wall |
