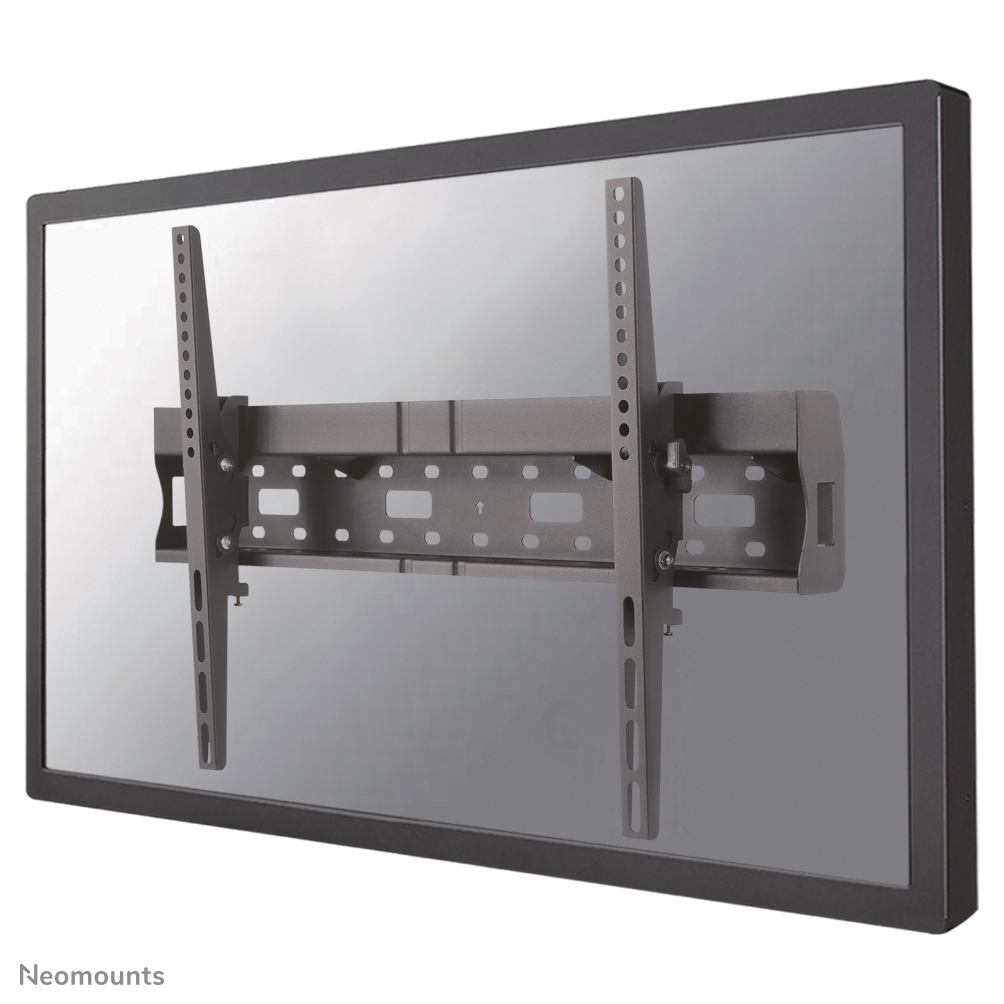

Neomounts model LFD-W2640MP is a tiltable wall mount for flat screens up to 75". The depth of this mount is 8,9 centimetres and also offers the option to store a Mediaplayer or Mini PC.
Neomounts LFD-W2640MP is suitable for screens up to 75". The weight capacity of this product is 35 kg and is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design ambiance for your flat screen TV/LFD in public areas. Perfect for digital signage use.
All installation material including is included with the product.
Products specifications
| Width | 644 mm |
| Height | 425 mm |
| Weight | 2.56 kg |
| Master (outer) case width | 680 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 19.9 kg |
| Master (outer) case net weight | 17.9 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 144 pc(s) |
| Package width | 133 mm |
| Package depth | 57 mm |
| Package height | 666 mm |
| Package weight | 3.3 kg |
| Country of origin | China |
| Package net weight | 3.3 kg |
| Product colour | Black |
| Housing material | Steel |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 24° |
| Distance to the wall (max) | 8.9 cm |
| Distance to the wall (min) | 8.9 cm |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600 |
| Mounting type | Wall |
