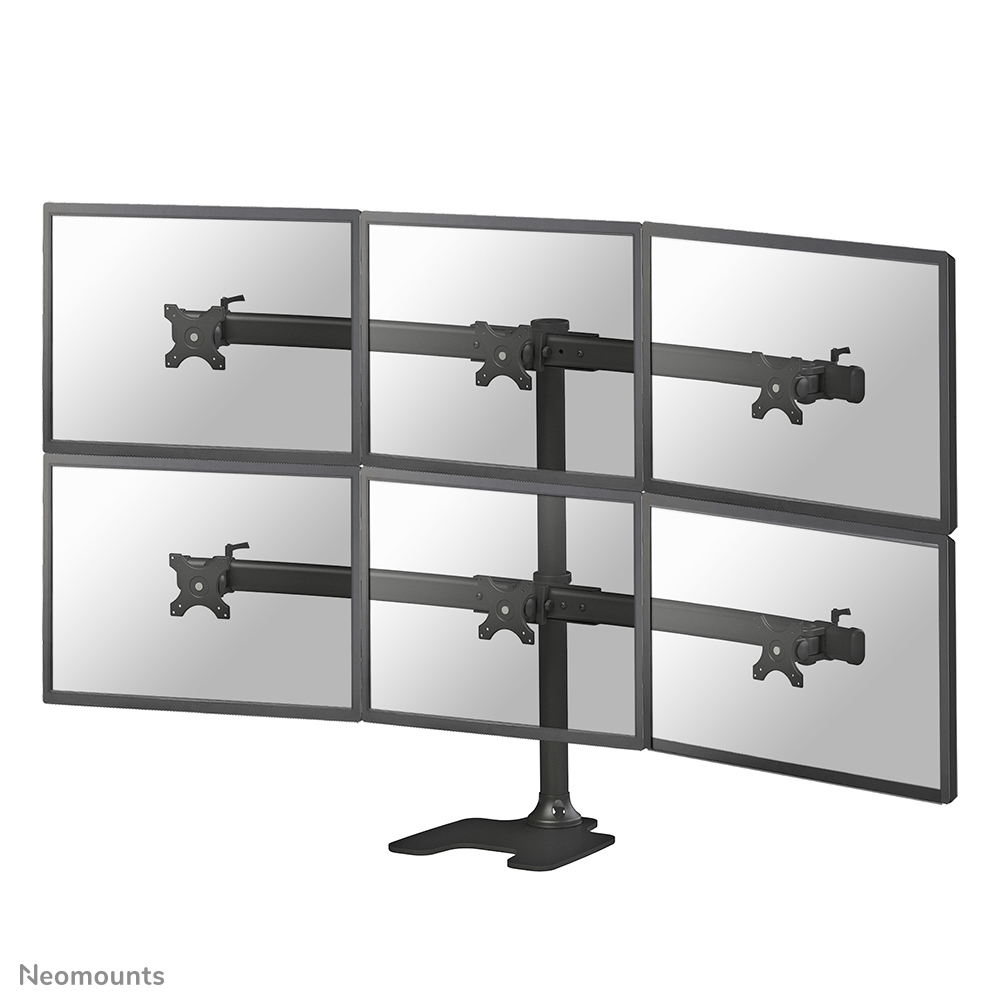

The Neomounts desk mount, model FPMA-D700DD6 is a tilt-, swivel and rotatable desk mount for 6 flat screens up to 27". This mount is a great choice for placement on desks using a desk stand.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 88 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700DD6 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Width | 340 mm |
| Depth | 370 mm |
| Height | 880 mm |
| Weight | 21.4 kg |
| Width adjustment range | 0 - 1290 mm |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 155 mm |
| Master (outer) case height | 930 mm |
| Master (outer) case gross weight | 24.1 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 24.1 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 20 pc(s) |
| Package width | 930 mm |
| Package depth | 420 mm |
| Package height | 155 mm |
| Package weight | 24.1 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 320 - 880 mm |
| Depth adjustment range | 0 - 370 mm |
| Tilt angle range | 0 - 180° |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Number of pivot points | 1 |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 6 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Freestanding/Grommet |
| Suitable for TV | Yes |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
