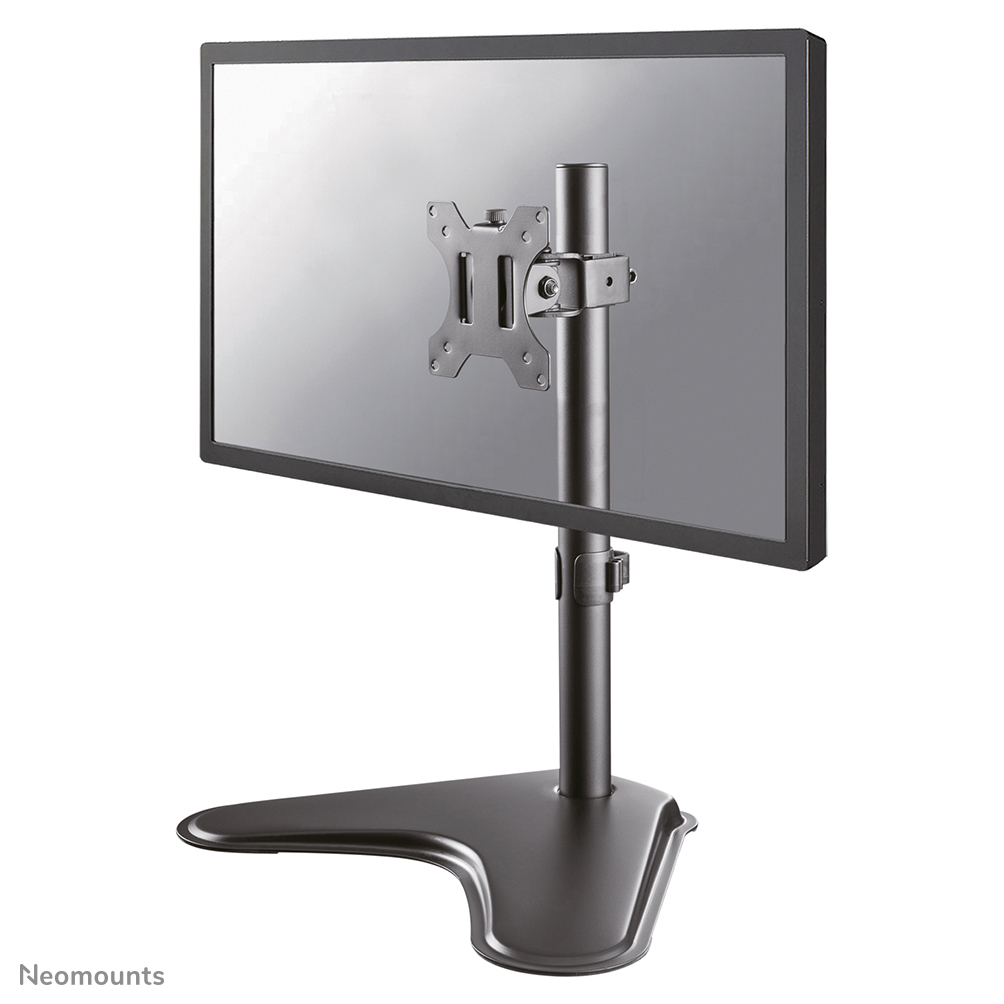

The Neomounts desk mount, model FPMA-D550SBLACK is a tilt-, swivel and rotatable desk mount for monitors up to 32". The monitor arm is easy to place on the desk using a stand.
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 5,6 to 41,9 centimeters. An innovative cable management routes cables from mount to flat screen. Additionally, the mount features a Quick-release VESA, that allows you to attach the monitor in a wink of an eye.
Neomounts FPMA-D550SBLACK is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Width | 390 mm |
| Depth | 280 mm |
| Height | 501 mm |
| Weight | 2.78 kg |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 370 mm |
| Master (outer) case gross weight | 17.4 kg |
| Products per master (outer) case | 5 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 100 pc(s) |
| Package width | 466 mm |
| Package depth | 289 mm |
| Package height | 70 mm |
| Package net weight | 3.3 kg |
| Package weight | 3.3 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 56 - 419 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 33 cm (13") |
| Number of displays supported | 1 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Freestanding |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
