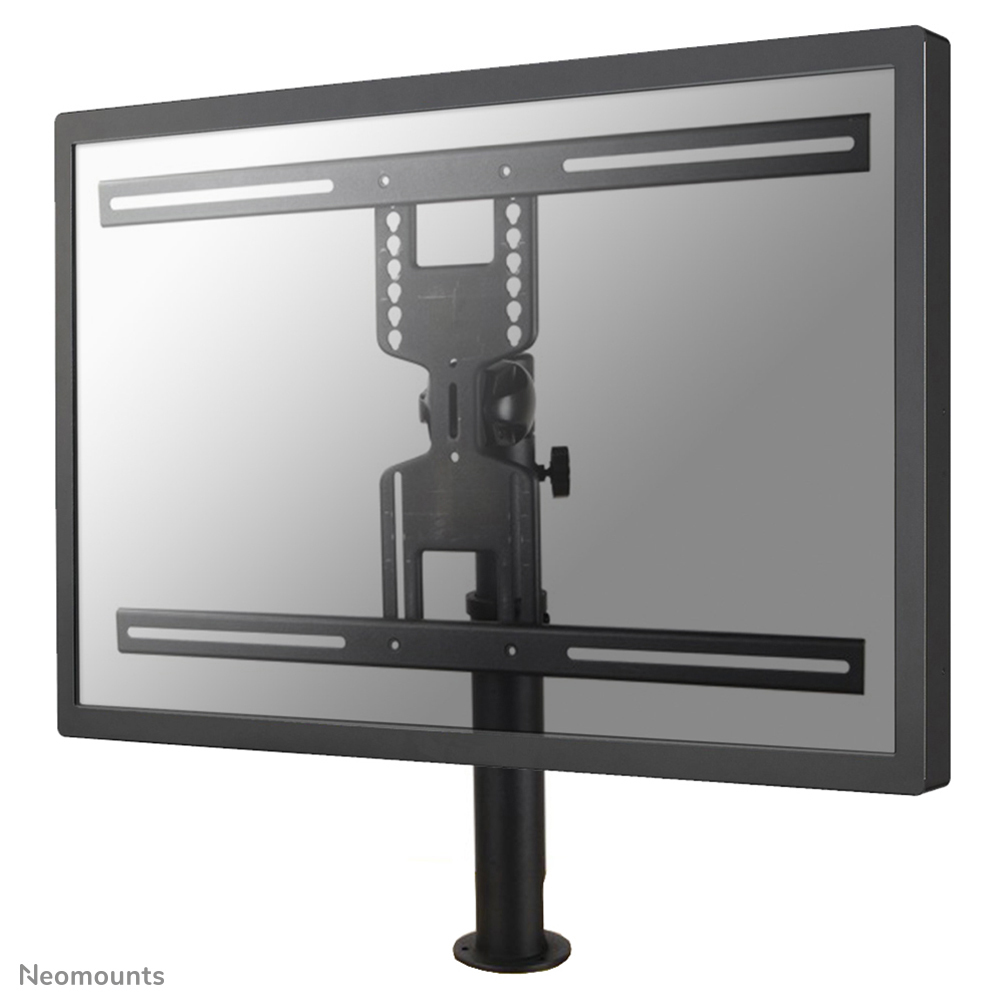

The Neomounts desk mount, model FPMA-D1200BLACK is a tilt- and swivel desk mount for flat screens up to 60". This mount is a great choice for space saving placement on desks using a grommet mount.
Neomounts versatile tilt (90°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is manually height adjustable from 46 to 60 centimetres. Depth 19 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D1200BLACK has one pivot point and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 40 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Depth | 116 mm |
| Height | 600 mm |
| Weight | 7.31 kg |
| Mounting | Bolt-down |
| Depth adjustment range | 0 - 116 mm |
| Master (outer) case width | 800 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 16.9 kg |
| Master (outer) case net weight | 15.8 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 42 pc(s) |
| Package width | 767 mm |
| Package depth | 152 mm |
| Package height | 142 mm |
| Package weight | 7.5 kg |
| Country of origin | Taiwan |
| Clamping range (flat surfaces) | 30 - 50 mm |
| Product colour | Black |
| Housing material | Steel |
| Compatibility | VESA 200x200 mm, 600x400 mm |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 400 - 600 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -18 - 0° |
| Swivelling | Yes |
| Swivel angle | 290° |
| Swivel angle range | 0 - 290° |
| Rotating | Yes |
| Angle of rotation | 0° |
| Type | Full motion |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 152.4 cm (60") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400 |
| Mounting type | Desk |
