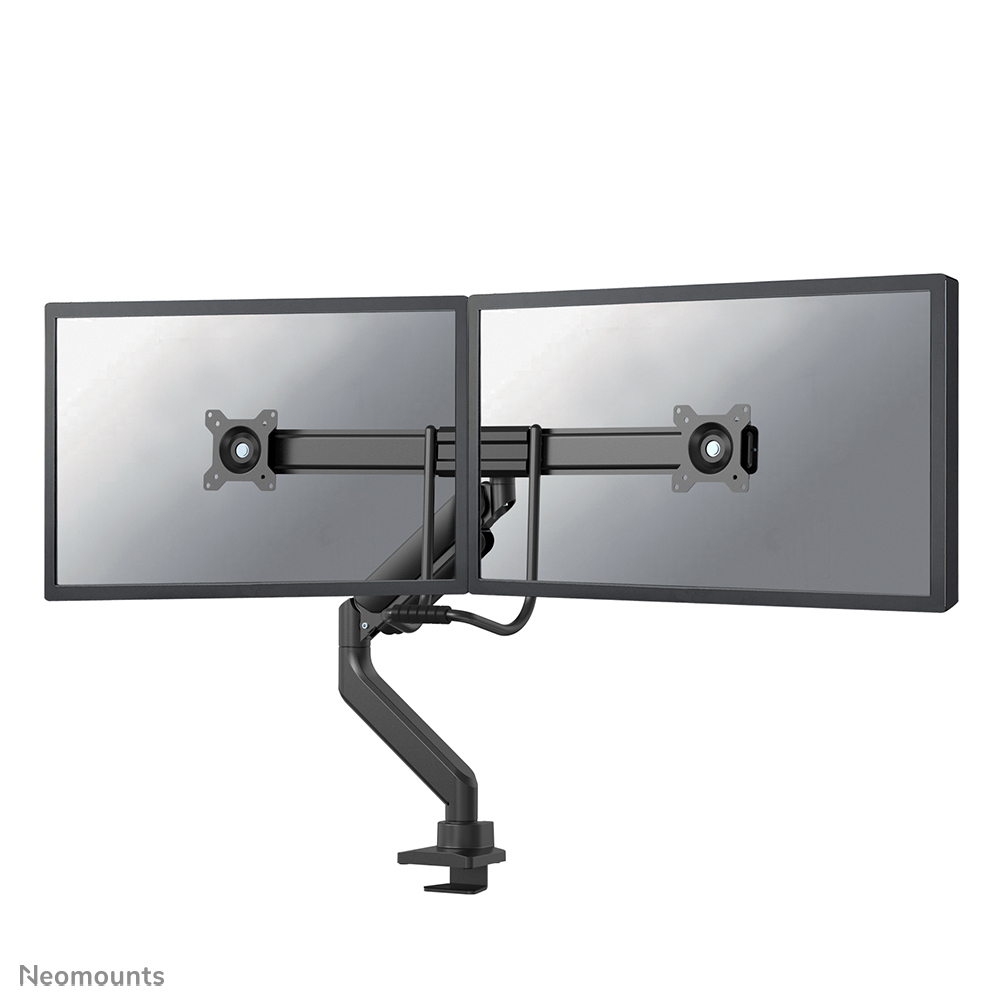

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.
The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Products specifications
| Width | 761 mm |
| Depth | 115 mm |
| Height | 646 mm |
| Weight | 6.4 kg |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 540 mm |
| Warranty period | 5 year(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 14.3 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Package width | 320 mm |
| Package depth | 152 mm |
| Package height | 445 mm |
| Package net weight | 7.9 kg |
| Package weight | 7.9 kg |
| Housing material | Steel |
| Product colour | Black |
| Mounting kit | Yes |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 291 - 560 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 143 - 553 mm |
| Width adjustment | 99 cm |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10° |
| Swivelling | Yes |
| Swivel angle | 20° |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
