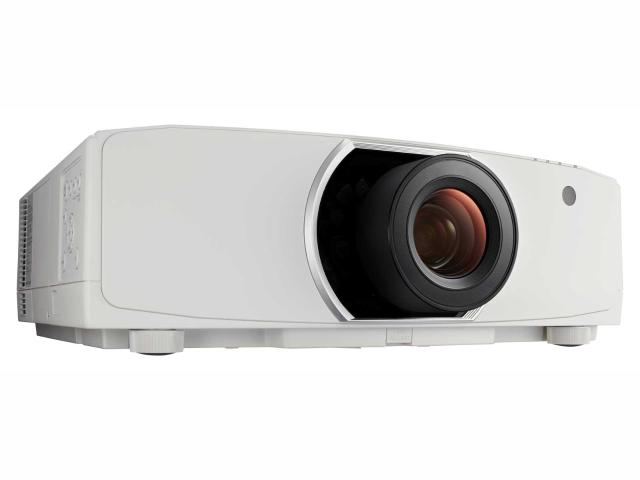

NEC PA653U Large venue projector 6500 ANSI lumens 3LCD WUXGA (1920x1200) 3D White

NEC PA653U. Projector brightness: 6500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 5000 h. Focus: Manual, Zoom type: Manual, Throw ratio: 1.46 - 3.02:1. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232
Manufacturer: Nec
SKU: 40001119
Vendor: Aspects
Professional Installation Projector

The NEC PA653U – the “multi-tool” installation projector

If extraordinary visualisation, brilliant colours and superb dynamic contrast is key for your business, then the NEC PA653U should be your first choice.

The compact 6,500 ANSI lumen LCD projector with WUXGA resolution not only trumps the competition with its unique colour processing technology, but also in its outstanding installation capabilities where motorized lens shift, focus and zoom makes setup effortless. The unique HDBaseT-out interface enables multiple projector daisy chaining via cost efficient network cables to a single source helping to reduce installation costs. Like a multi-tool, the essential features continue with management of the latest copyright protocol to play 4k and Ultra HD Blu-ray content whilst the long lamp life and even longer filter life earn a most attractive Total Cost of Ownership.

All in all the NEC PA653U projector is perfectly suited for meeting-, lecture- and seminar-rooms in corporate and higher education installations.

Benefits:

- Cinema Quality Visualisation – enjoy excellent picture quality even in bright ambient light conditions with unique picture & colour processing technology (up to up to 4K/60Hz) based on the latest NEC scaler chip.
- Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
- Cost conscious & powerful cabling – with just CAT6 network cabling, transfer content over up to 100m using HDBaseT connectivity standard. Supply multiple projectors with one source and benefit from the unique HDBaseT-out daisy-chain interface.
- Impress with brilliant colours & contrast – astound your audience as the projector processes a wider colour space with Rec2020 to Rec709 colour conversion and higher dynamic contrast supporting HDR10 standard via HDMI interface.
- Peace of mind copyright protected content – let the projector manage copyright protection and present 4k and Ultra HD Blu-ray content via the HDMI interface.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€5176.72 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Professional Installation Projector

The NEC PA653U – the “multi-tool” installation projector

If extraordinary visualisation, brilliant colours and superb dynamic contrast is key for your business, then the NEC PA653U should be your first choice.

The compact 6,500 ANSI lumen LCD projector with WUXGA resolution not only trumps the competition with its unique colour processing technology, but also in its outstanding installation capabilities where motorized lens shift, focus and zoom makes setup effortless. The unique HDBaseT-out interface enables multiple projector daisy chaining via cost efficient network cables to a single source helping to reduce installation costs. Like a multi-tool, the essential features continue with management of the latest copyright protocol to play 4k and Ultra HD Blu-ray content whilst the long lamp life and even longer filter life earn a most attractive Total Cost of Ownership.

All in all the NEC PA653U projector is perfectly suited for meeting-, lecture- and seminar-rooms in corporate and higher education installations.

Benefits:

- Cinema Quality Visualisation – enjoy excellent picture quality even in bright ambient light conditions with unique picture & colour processing technology (up to up to 4K/60Hz) based on the latest NEC scaler chip.
- Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
- Cost conscious & powerful cabling – with just CAT6 network cabling, transfer content over up to 100m using HDBaseT connectivity standard. Supply multiple projectors with one source and benefit from the unique HDBaseT-out daisy-chain interface.
- Impress with brilliant colours & contrast – astound your audience as the projector processes a wider colour space with Rec2020 to Rec709 colour conversion and higher dynamic contrast supporting HDR10 standard via HDMI interface.
- Peace of mind copyright protected content – let the projector manage copyright protection and present 4k and Ultra HD Blu-ray content via the HDMI interface.
Products specifications
Features
Noise level (economic mode)33 dB
HDCPYes
On Screen Display (OSD)Yes
Noise level39 dB
Password protectionYes
CertificationCE; EAC; ErP; TUEV
Weight & dimensions
Width499 mm
Depth406 mm
Height163.7 mm
Weight10.2 kg
Other features
RS-232 ports1
Logistics data
Harmonized System (HS) code85286200
Operational conditions
Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%
Power
Power sourceAC
Power consumption (typical)482 W
Power consumption (standby)0.26 W
Power consumption (network standby)1 W
Power consumption (economy mode)376 W
Technical details
Compliance certificatesRoHS
Ports & interfaces
DisplayPorts quantity1
HDBaseT portYes
USB 2.0 ports quantity1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
VGA (D-Sub) ports quantity1
HDMI ports quantity2
DVI portNo
CardBus PCMCIA slot typeNo
AC (power) inYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling
LED indicatorsYes
Packaging content
Remote control includedYes
Remote control typeIR
Cables includedAC
Quick start guideYes
Bundled softwareNaViSet Administrator 2
Storage
Card reader integratedNo
Optical disc player typeNot included
Lens system
FocusManual
Zoom capabilityYes
Zoom typeManual
Throw ratio1.46 - 3.02:1
Projector
Projection distance0.7 - 50.9 m
Projector brightness6500 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)8000:1
Native aspect ratio16:10
Horizontal scan range15 - 153 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Light source
Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Lamp typeUHP
Lamp power370 W
Lamp power (economic mode)280 W
Lamps quantity1 lamp(s)
Video
Full HDYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
*
*
*
Products specifications
Features
Noise level (economic mode)33 dB
HDCPYes
On Screen Display (OSD)Yes
Noise level39 dB
Password protectionYes
CertificationCE; EAC; ErP; TUEV
Weight & dimensions
Width499 mm
Depth406 mm
Height163.7 mm
Weight10.2 kg
Other features
RS-232 ports1
Logistics data
Harmonized System (HS) code85286200
Operational conditions
Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%
Power
Power sourceAC
Power consumption (typical)482 W
Power consumption (standby)0.26 W
Power consumption (network standby)1 W
Power consumption (economy mode)376 W
Technical details
Compliance certificatesRoHS
Ports & interfaces
DisplayPorts quantity1
HDBaseT portYes
USB 2.0 ports quantity1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
VGA (D-Sub) ports quantity1
HDMI ports quantity2
DVI portNo
CardBus PCMCIA slot typeNo
AC (power) inYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling
LED indicatorsYes
Packaging content
Remote control includedYes
Remote control typeIR
Cables includedAC
Quick start guideYes
Bundled softwareNaViSet Administrator 2
Storage
Card reader integratedNo
Optical disc player typeNot included
Lens system
FocusManual
Zoom capabilityYes
Zoom typeManual
Throw ratio1.46 - 3.02:1
Projector
Projection distance0.7 - 50.9 m
Projector brightness6500 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)8000:1
Native aspect ratio16:10
Horizontal scan range15 - 153 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Light source
Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Lamp typeUHP
Lamp power370 W
Lamp power (economic mode)280 W
Lamps quantity1 lamp(s)
Video
Full HDYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
