When imaging precision cannot be compromised
When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync P series presents best-in-class performance with an advanced feature set for mission-critical applications.

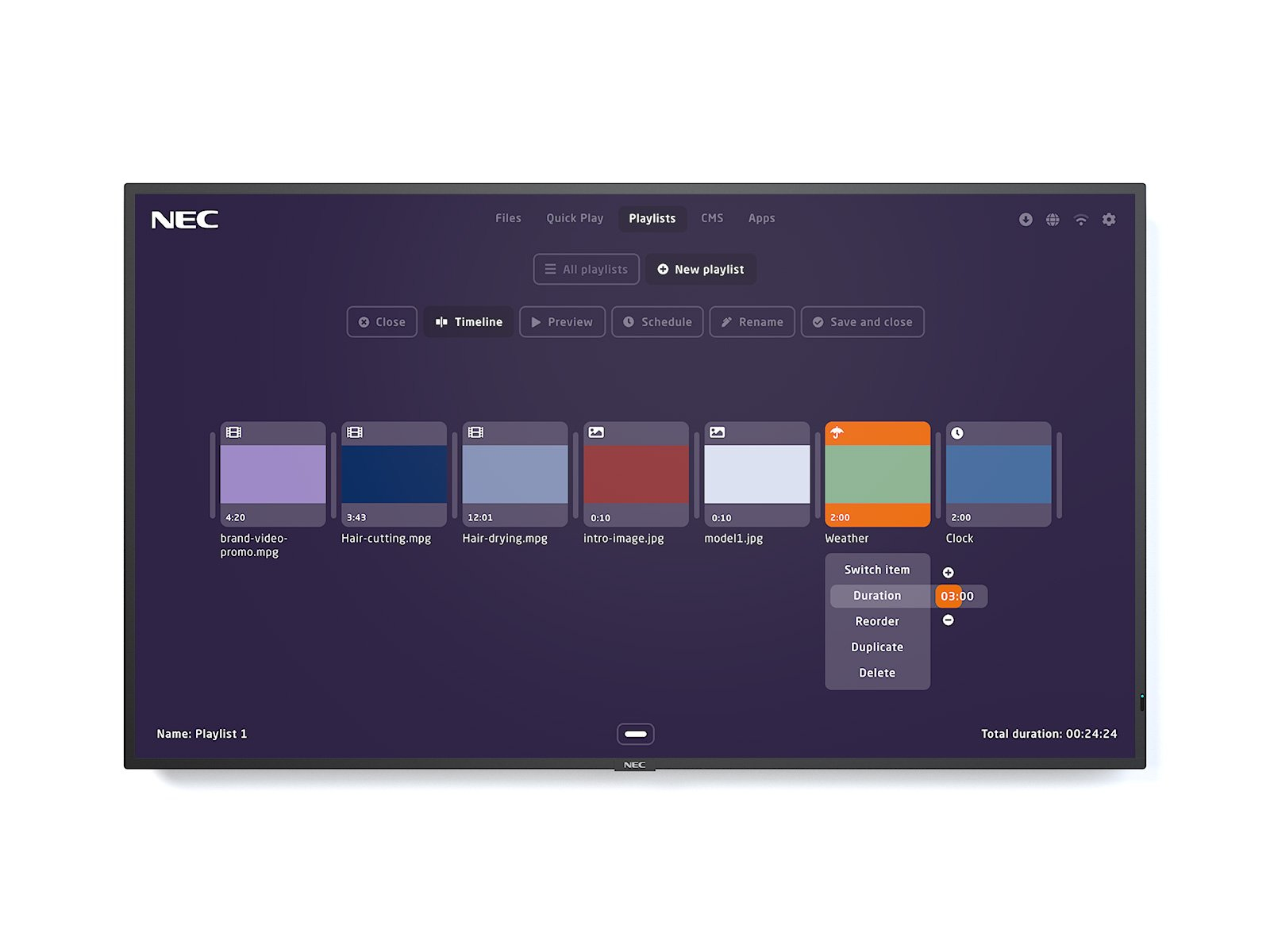

Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring the pre-installed NEC MediaPlayer you get an out of the box signage experience and can playback the content needed for your application: video, picture, html or use any of the supported Content Management Systems (CMS).
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P-MPi4 series is trusted for safety and long-life, fit-for-purpose performance..
Products specifications
| Display width | 1103.4 mm |
| Display depth | 61.1 mm |
| Display height | 636.2 mm |
| Display weight | 22.9 kg |
| Harmonized System (HS) code | 85285210 |
| Package width | 1298 mm |
| Package depth | 224 mm |
| Package height | 860 mm |
| Package weight | 29.8 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 105 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 106 kWh |
| Energy consumption (HDR) per 1000 hours | 98 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Sustainability certificates | ENERGY STAR |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Number of speaker outputs | 1 |
| RS-232 interface | Yes |
| Remote (IR) input | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.56 cm |
| Bezel width (side) | 1.25 cm |
| Bezel width (top) | 1.2 cm |
| Purpose | Universal |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| LED backlighting type | Edge-LED |
| Display diagonal | 124.5 cm (49") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 124.5 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A72 |
| Processor frequency | 1.5 GHz |
| Internal storage capacity | 32 GB |
