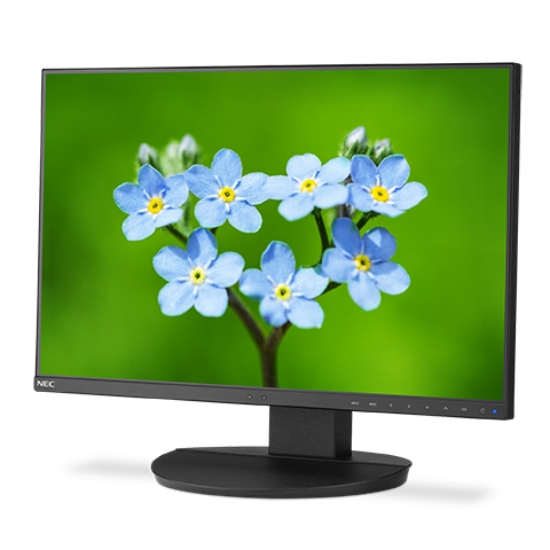

The 23” NEC MultiSync EA231WU is a Wide UXGA 1920x1200 ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed for excellent imaging and ideal for multiple monitor configurations, this widescreen model features IPS panel technology with wide viewing angles (178 horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA231WU allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models.ControlSync echnology allows users to control up to six EA231WU displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment.
Products specifications
| Width (with stand) | 498.9 mm |
| Depth (with stand) | 250 mm |
| Height (with stand) | 337.2 mm |
| Weight (with stand) | 8.3 kg |
| Width (without stand) | 498.9 mm |
| Depth (without stand) | 45.6 mm |
| Height (without stand) | 319.7 mm |
| Weight (without stand) | 5.9 kg |
| Height (max) | 48.7 cm |
| TV tuner integrated | No |
| Certification | Low Blue Light, Flicker Free |
| Harmonized System (HS) code | 85285210 |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 391613 |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Market positioning | Business |
| Product colour | Black |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewable size, horizontal | 17.8 cm |
| Viewable size, vertical | 17.8 cm |
| Colour gamut standard | sRGB |
| NTSC coverage (typical) | 72.1% |
| Cables included | DisplayPort, USB |
| Manual | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -170 - 170° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| Sustainability certificates | No |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
