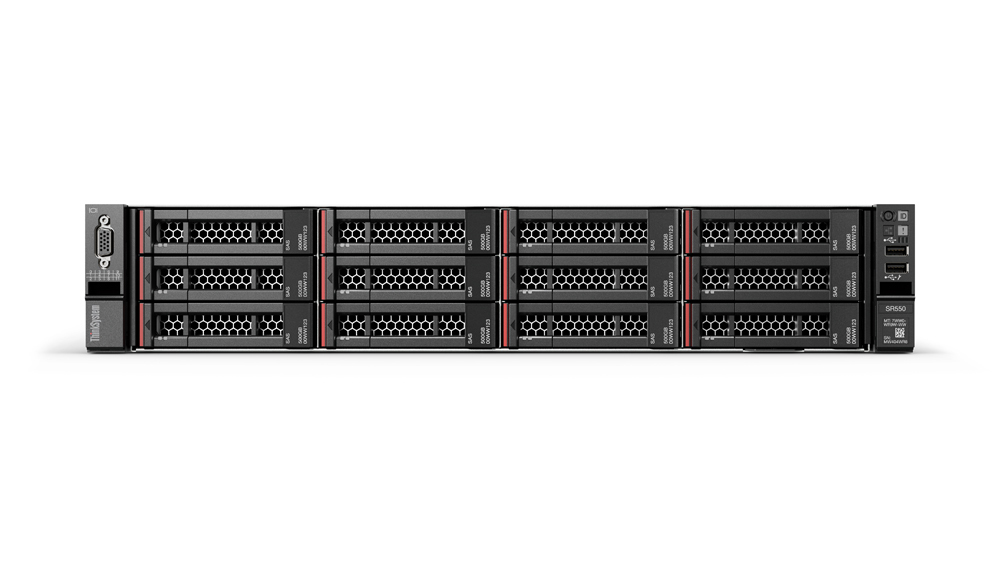

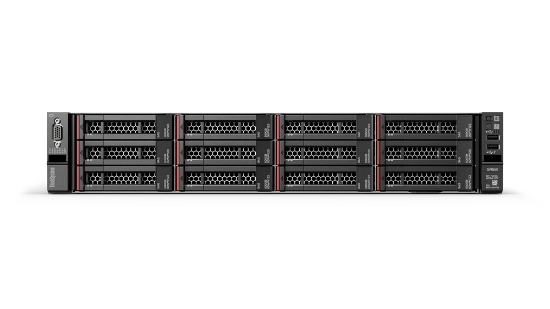

Lenovo ThinkSystem SR550 server Rack (2U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 750 W

Lenovo ThinkSystem SR550. Processor family: Intel Xeon Silver, Processor frequency: 2.1 GHz, Processor model: 4208. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 16 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
Manufacturer: Lenovo
SKU: 7X04A07JEA
Vendor: Aspects
The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.

Featuring the Intel Xeon Processor Scalable Family, the SR550 server offers a balance of performance, capacity and value. The SR550 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, up to 16x 2.5-inch or up to 12x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible and scalable I/O expansion options with the LOM slot and up to 6x PCIe slots.

The SR550 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR550 server, provides advanced service processor control, monitoring, and alerting functions.

The SR550 server offers a balance of processing power, storage capacity, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€3721.31 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.

Featuring the Intel Xeon Processor Scalable Family, the SR550 server offers a balance of performance, capacity and value. The SR550 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, up to 16x 2.5-inch or up to 12x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible and scalable I/O expansion options with the LOM slot and up to 6x PCIe slots.

The SR550 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR550 server, provides advanced service processor control, monitoring, and alerting functions.

The SR550 server offers a balance of processing power, storage capacity, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.
Products specifications
Weight & dimensions
Width445 mm
Depth720 mm
Height87 mm
Other features
Built-in displayNo
Logistics data
Harmonized System (HS) code84714100
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)8 - 90%
Storage relative humidity (H-H)8 - 90%
Operating altitude0 - 3050 m
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of redundant power supplies installed1
Power supply input frequency50 - 60 Hz
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Serial ports quantity1
Network
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Design
Chassis typeRack (2U)
Rack mountingYes
Redundant fans supportYes
Rack railsYes
Performance
Performance managementXClarity Standard
Processor
Processor manufacturerIntel
Processor familyIntel Xeon Silver
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model4208
Processor frequency2.1 GHz
Processor boost frequency3.2 GHz
Processor cores8
Processor cache11 MB
Number of processors installed1
Thermal Design Power (TDP)85 W
Processor cache typeSmart Cache
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads16
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase78 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsAVX-512
Scalability2S
Embedded options availableNo
Memory
Internal memory16 GB
Internal memory typeDDR4-SDRAM
Memory slots24
ECCYes
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 16 GB
Storage
Number of HDDs supported12
Supported HDD sizes3.5"
RAID supportNo
Hot-swapYes
Optical drive typeNo
Supported storage drive interfacesSAS, Serial ATA III
Card reader integratedNo
Graphics
Discrete graphics cardNo
On-board graphics cardYes
On-board graphics card modelNot available
Expansion slots
PCI Express x8 slots1
PCI Express slots version3.0
Software
Compatible operating systemsMicrosoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NIYes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID193390
*
*
*
Products specifications
Weight & dimensions
Width445 mm
Depth720 mm
Height87 mm
Other features
Built-in displayNo
Logistics data
Harmonized System (HS) code84714100
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)8 - 90%
Storage relative humidity (H-H)8 - 90%
Operating altitude0 - 3050 m
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of redundant power supplies installed1
Power supply input frequency50 - 60 Hz
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Serial ports quantity1
Network
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Design
Chassis typeRack (2U)
Rack mountingYes
Redundant fans supportYes
Rack railsYes
Performance
Performance managementXClarity Standard
Processor
Processor manufacturerIntel
Processor familyIntel Xeon Silver
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model4208
Processor frequency2.1 GHz
Processor boost frequency3.2 GHz
Processor cores8
Processor cache11 MB
Number of processors installed1
Thermal Design Power (TDP)85 W
Processor cache typeSmart Cache
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads16
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase78 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsAVX-512
Scalability2S
Embedded options availableNo
Memory
Internal memory16 GB
Internal memory typeDDR4-SDRAM
Memory slots24
ECCYes
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 16 GB
Storage
Number of HDDs supported12
Supported HDD sizes3.5"
RAID supportNo
Hot-swapYes
Optical drive typeNo
Supported storage drive interfacesSAS, Serial ATA III
Card reader integratedNo
Graphics
Discrete graphics cardNo
On-board graphics cardYes
On-board graphics card modelNot available
Expansion slots
PCI Express x8 slots1
PCI Express slots version3.0
Software
Compatible operating systemsMicrosoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NIYes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID193390
