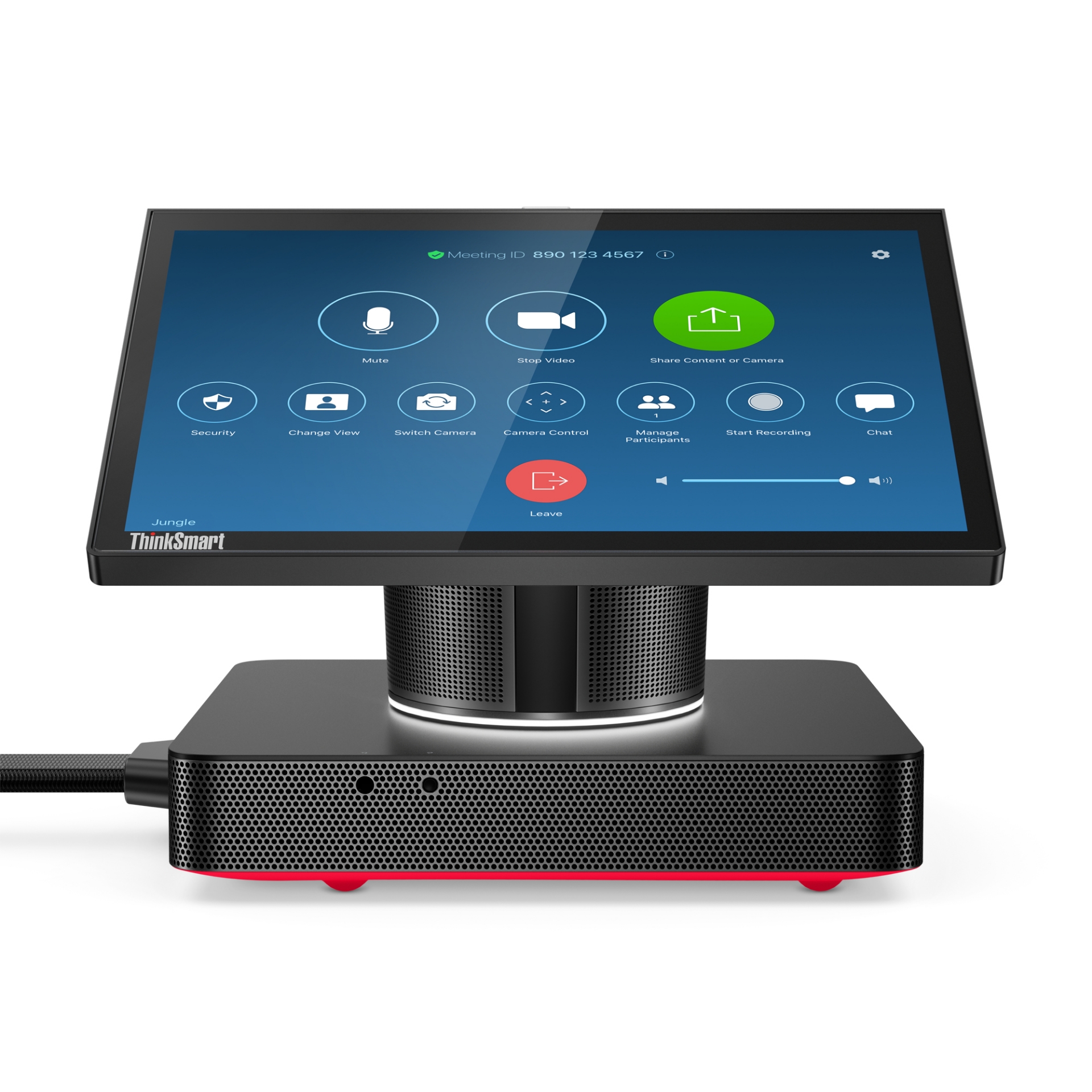

Lenovo ThinkSmart Hub. Product type: All-in-One PC. Display diagonal: 25.6 cm (10.1"), HD type: Full HD, Display resolution: 1920 x 1200 pixels, Touchscreen. Processor family: Intel® Core™ i5, Processor frequency: 1.6 GHz. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 620. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black
Products specifications
| Width (with stand) | 240 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 185.3 mm |
| Weight (with stand) | 2.45 kg |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Compliance certificates | RoHS |
| Certification | TÜV Rheinland Ultra Low Noise |
| Box contents | ThinkSmart One Cable (1.83m) |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Colour name | Black |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | All-in-One PC |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| BIOS password | Yes |
| HDD user password | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:10 |
| Display brightness | 320 cd/m² |
| Anti-glare screen | Yes |
| Mouse included | No |
| Keyboard included | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| RMS rated power | 12 W |
| Built-in microphone | Yes |
| Audio system | HD |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365UE |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 1.1 GHz |
| Configurable TDP-down | 12.5 W |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory form factor | On-board |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system language | Dutch, English, Italian, French, German |
| Bundled software | Microsoft Teams Rooms |
| CPU configuration (max) | 1 |
| Built-in camera | No |
