The Smarter Way To Work.

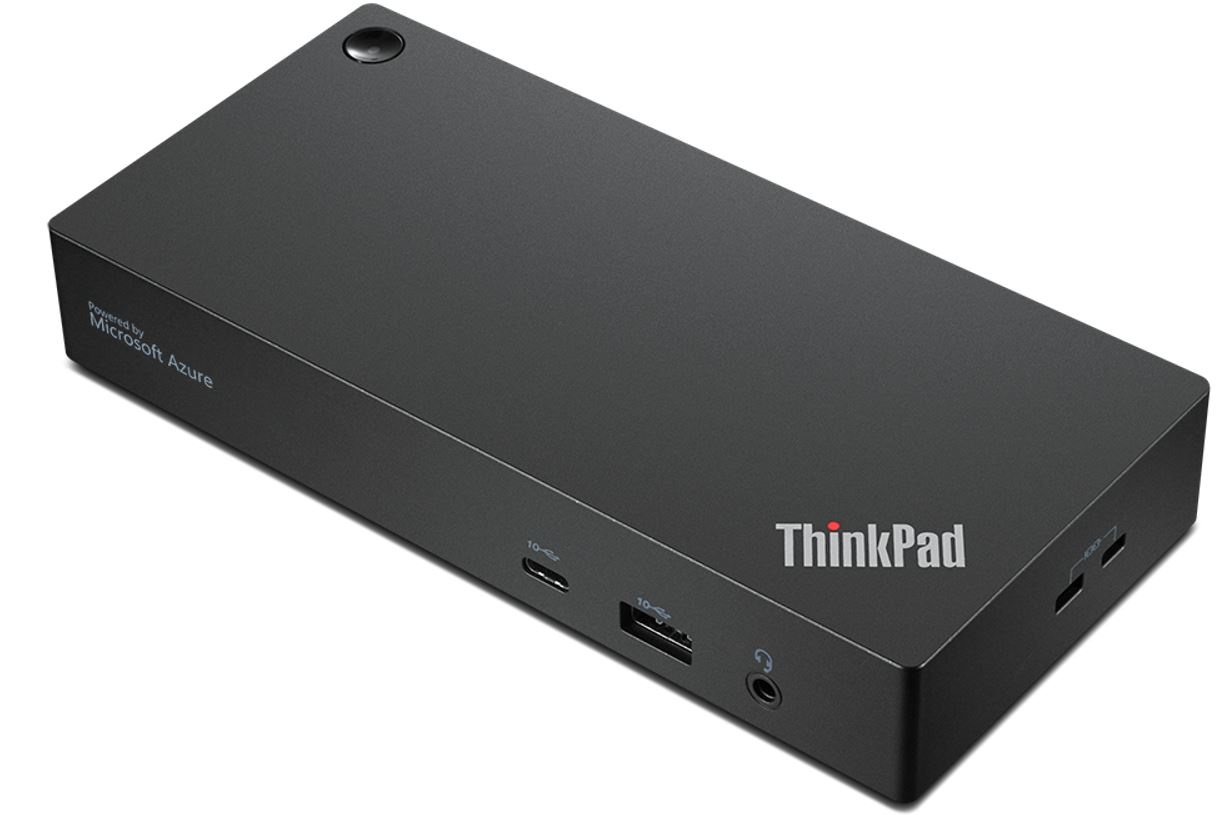

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® Universal USB-C Smart Dock (40B2) is at the cutting edge of our new series of docks offering a smarter way to work. A bridge to a more intelligent future, the dock features a rich array of data, display, and power ports, including universal USB-C compatibility, while driving incredible performance for commercial users and a secure cloud-based management solution for IT managers. And it’s all powered by Microsoft Azure Sphere.
Products specifications
| Width | 171 mm |
| Depth | 80 mm |
| Height | 30.8 mm |
| Weight | 388 g |
| Harmonized System (HS) code | 84733020 |
| Quantity per pack | 1 pc(s) |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Package weight | 1.25 kg |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Power supply | 135 W |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Product colour | Black |
| Certification | FCC/ICES; CE; RCM; BSMI; VCCI; CB; cULus; TUV- Mark; LoA |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
