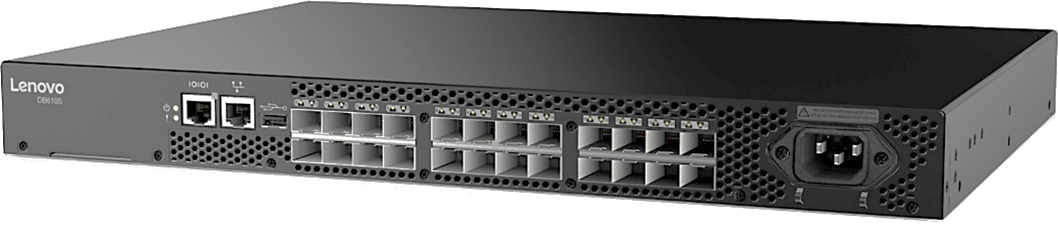

The Lenovo ThinkSystem DB610S 32Gb FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S FC SAN Switch is a compact 1U rack-mount switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment.
This product guide provides essential pre-sales information to understand the ThinkSystem DB610S FC SAN Switch, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem DB610S FC SAN Switch and consider its use in IT solutions.
Products specifications
| Width | 429 mm |
| Depth | 307 mm |
| Height | 43 mm |
| Weight | 42 kg |
| Power supply | 150 W |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 150 W |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 8 |
| SFP+ module slots quantity | 24 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Switching capacity | 14.025 Gbit/s |
| Throughput | 768000 Mpps |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, IPSec, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Multicast support | Yes |
