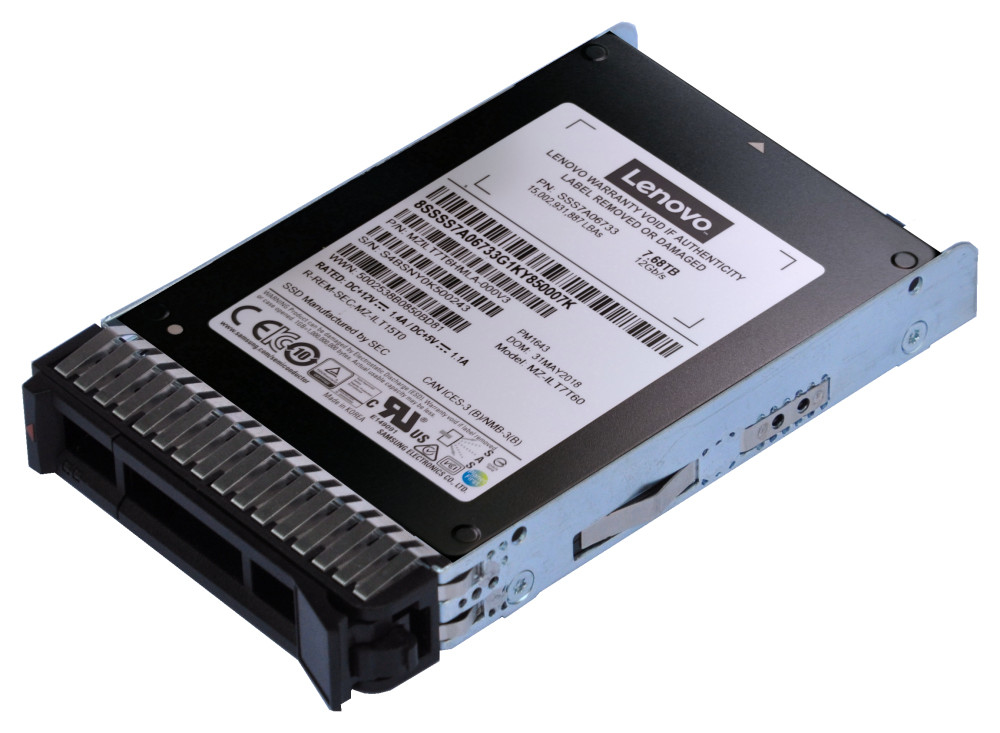

The PM1643 Capacity/Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
This product guide provides essential presales information to understand the PM1643 Capacity SAS 12Gb SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| NVMe | No |
| Memory type | V-NAND |
| Component for | Server/workstation |
| Data transfer rate | 12 Gbit/s |
| Random read (4KB) | 230000 IOPS |
| Random write (4KB) | 30000 IOPS |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Width | 133 mm |
| Depth | 174 mm |
| Height | 63 mm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
