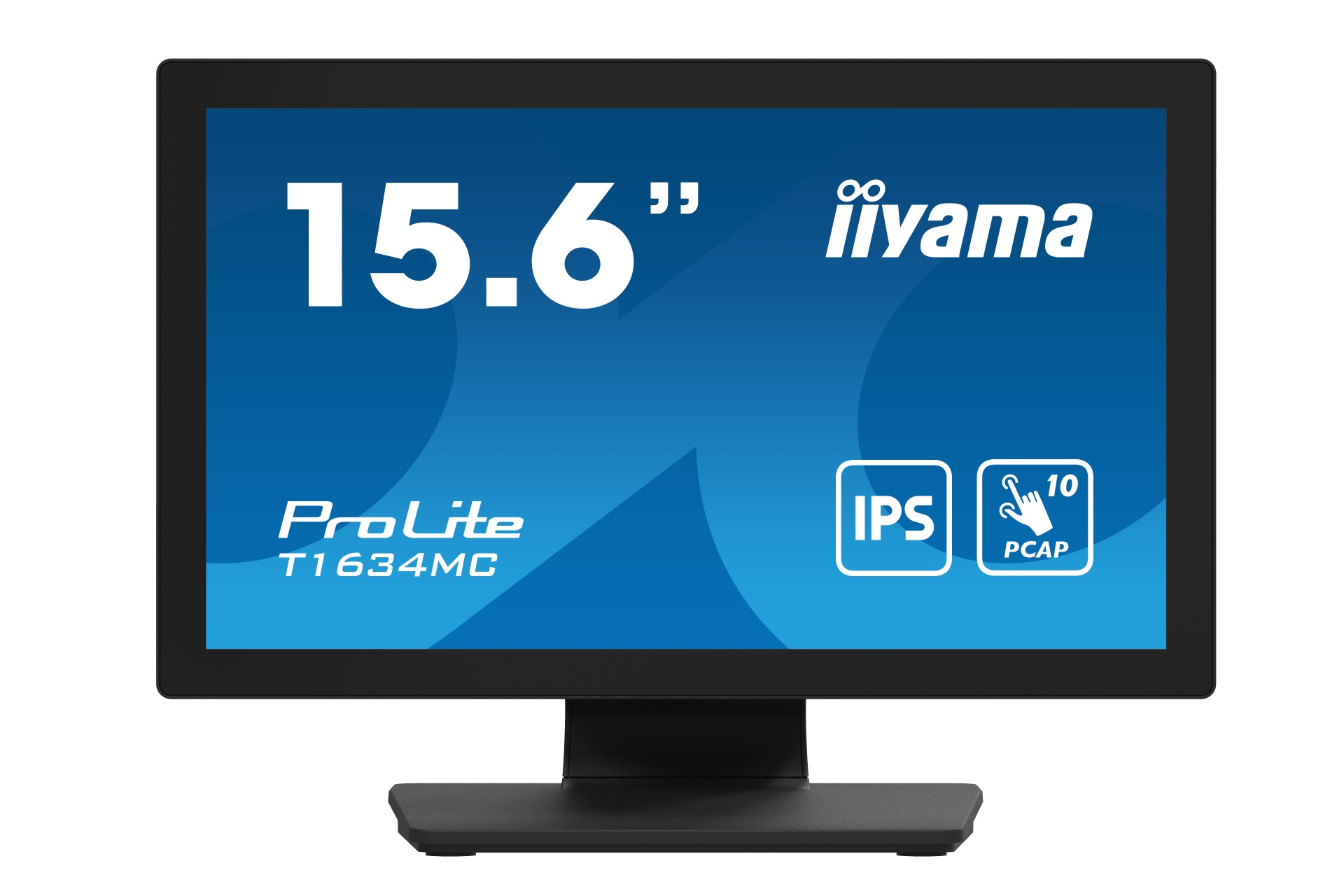

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function
The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
Products specifications
| Width (with stand) | 381 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 285.5 mm |
| Weight (with stand) | 3.4 kg |
| International Protection (IP) code | IP65 |
| Second display effective viewing area | 344.2 x 193.6 mm |
| Package width | 445 mm |
| Package depth | 150 mm |
| Package height | 355 mm |
| Package weight | 5.18 kg |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1530736 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Market positioning | Office |
| Product colour | Black |
| Glass thickness | 2.4 mm |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 405 cd/m² |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Response time (fast) | 25 ms |
| Pixel pitch | 0.179 x 0.179 mm |
| Digital horizontal frequency | 30 - 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Colour depth | 6 bit |
| Colour gamut | 90% |
| Cables included | AC, DisplayPort, HDMI, USB |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
