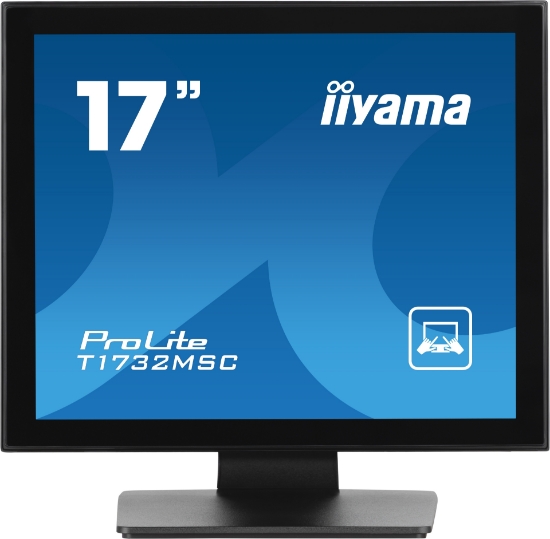

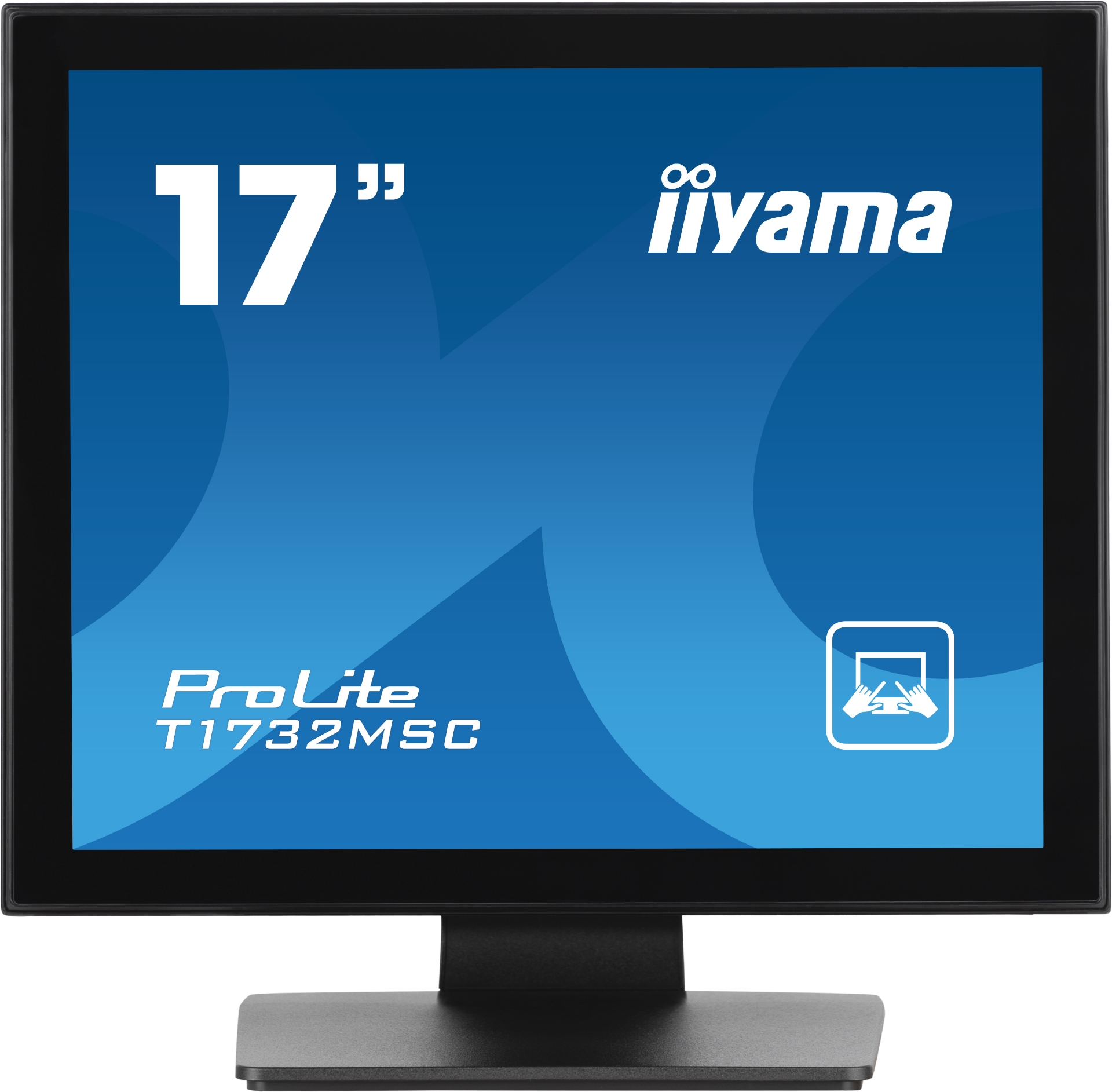

PROLITE T1732MSC-B1S
17" Projective Capacitive 10pt touchscreen
The T1732MSC-B1S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Products specifications
| Width (with stand) | 387 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 4.9 kg |
| International Protection (IP) code | IP54 |
| Placement supported | Indoor |
| Built-in processor | No |
| Active display area (W x H) | 338 x 270.5 mm |
| Multi-touch | Yes |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 0 kWh |
| Energy consumption (HDR) per 1000 hours | 0 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| European Product Registry for Energy Labelling (EPREL) code | 1518676 |
| Built-in USB hub | No |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
| HDCP | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Market positioning | Business |
| Product colour | Black |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen | Yes |
| Touchscreen type | Table |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 250 cd/m² |
| Screen shape | Flat |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 0 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Horizontal scan range | 31 - 80 kHz |
| Display diagonal (metric) | 43 cm |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | No |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of speakers | 2 |
| RMS rated power | 1 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
