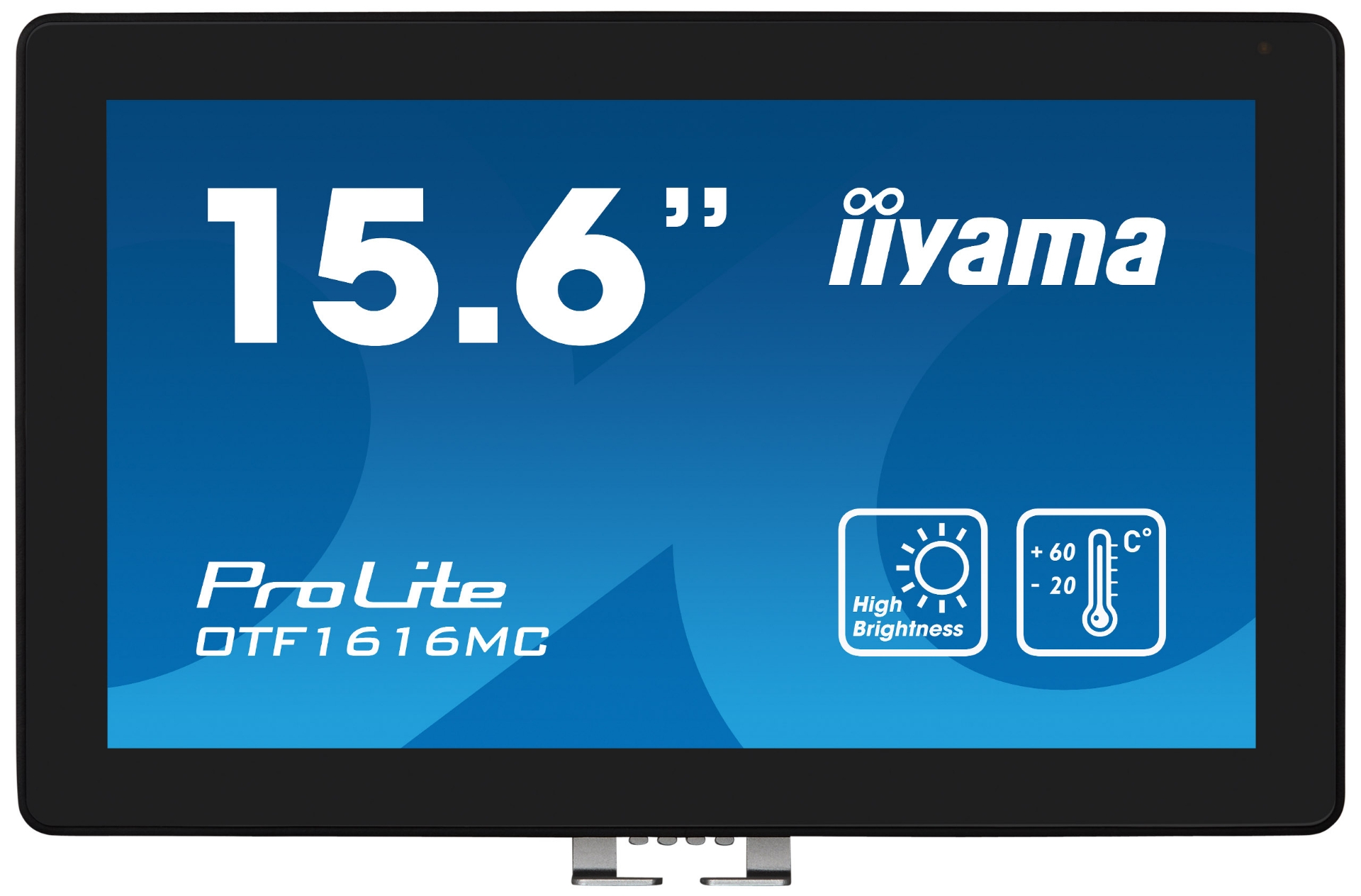

15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications
Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C.
The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.
HIGH-BRIGHTNESS
The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.
Products specifications
| Display width | 398.5 mm |
| Display depth | 42 mm |
| Display height | 246 mm |
| Display weight | 3 kg |
| Package width | 485 mm |
| Package depth | 150 mm |
| Package height | 370 mm |
| Package weight | 4.62 kg |
| Operating temperature (T-T) | -20 - 60 °C |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Energy efficiency scale | A to G |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| HDCP | Yes |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 60000 h |
| Panel type | VA |
| Display diagonal | 39.6 cm (15.6") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1100 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 25 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Display diagonal (metric) | 39.5 cm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3.5 mm |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
