UNMATCHED SCALABILITY AND PERFORMANCE.

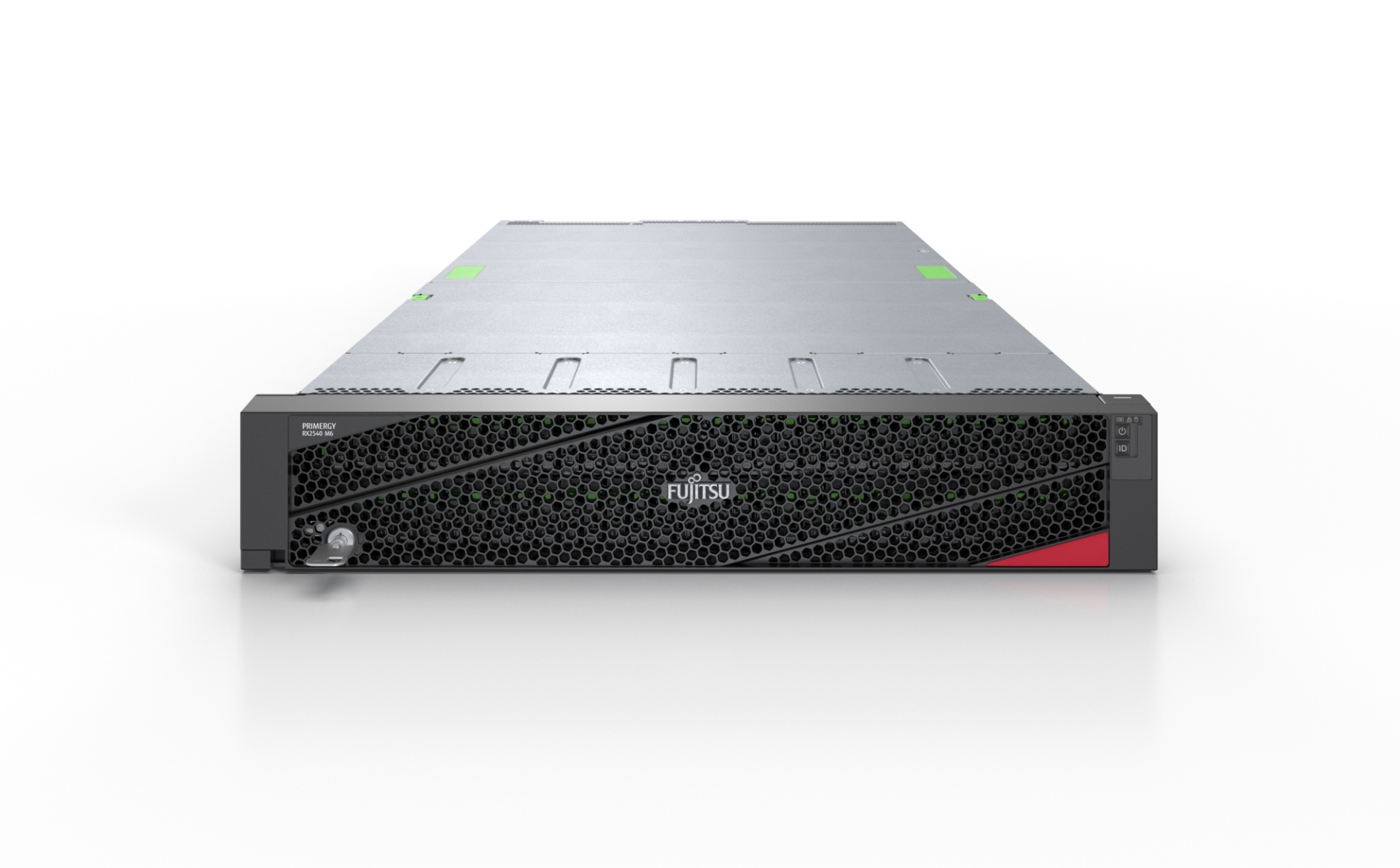

2U, 2-socket platform that provides scalability and performance to adapt to a variety of applications. Drive demanding workloads by latest 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores per CPU.
ACCELERATE IT TRANSFORMATION.
Transform your data center for modern operations and drive demanding workloads with 32 DIMM modules (up to 12 TB in combination with PMem). Intel® Optane™ persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads.
EXTENSIVE EXPANDABILITY.
Maximize storage performance with up to 12x 3.5”, up to 24x 2.5”, or 64x EDSFF storage drives and ensure application performance scales to meet demands. Up to 8 PCIe Gen 4 slots and flexible DynamicLoM adapters via OCP V3 also ensures enough growth opportunities.
AGILE INFRASTRUCTURE MANAGEMENT.
As you scale your infrastructure, scale your profitability with embedded intelligence from iRMC S5 as well as Infrastructure Manager (ISM) which enables organizations to have centralized control over the entire data center using a single user interface.
Products specifications
| Width | 482.5 mm |
| Depth | 800 mm |
| Height | 86.9 mm |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Power supply input voltage | 100-240 V |
| Power supply input frequency | 50/60 Hz |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 2 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | Rack (2U) |
| Product colour | Black, Stainless steel |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| Bezel | Yes |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 18 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 12 TB |
| HDD interface | SATA III, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Hot-Plug support | Yes |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 4 |
| Operating system installed | No |
