Sorry - this product is no longer available

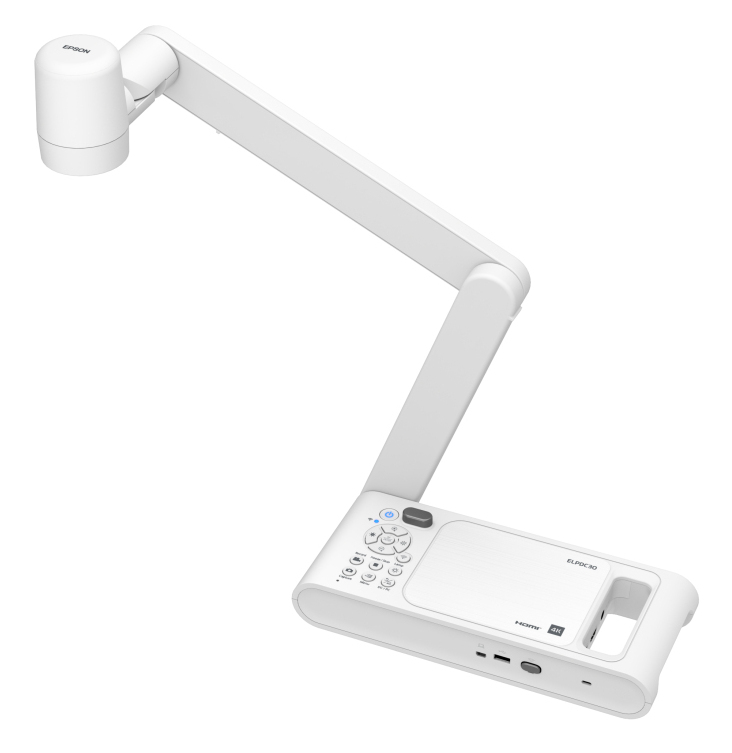

Epson V12HB09080 document camera White 25.4 / 3.2 mm (1 / 3.2") CMOS USB/HDMI/Wi-Fi

Epson V12HB09080. Optical sensor size: 25.4 / 3.2 mm (1 / 3.2"), Sensor type: CMOS, Supported graphics resolutions: 320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024.... Optical zoom: 10x, Digital zoom: 23x, Shooting area (WxD): 297 x 420 mm. Interface: USB/HDMI/Wi-Fi, USB connector type: Mini-USB B, USB Type-A, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Power consumption (typical): 9.6 W, Power consumption (standby): 0.5 W. Width: 586 mm, Depth: 159 mm, Height: 554 mm
Manufacturer: Epson
SKU: V12HB09080
Vendor: Aspects
The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.

The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.

An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€818.35 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.

The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.

An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.
Products specifications
Weight & dimensions
Width586 mm
Depth159 mm
Height554 mm
Weight2.8 kg
Dimensions folded (WxDxH)362 x 159 x 85 mm
Packaging data
Quantity per pack1 pc(s)
Power
Power consumption (typical)9.6 W
Power consumption (standby)0.5 W
Technical details
Product colourWhite
Control typeButtons
Display modesMicroscope, Motion
Anti-flickerYes
LED indicatorsYes
Cable lock slotYes
Cable lock slot typeKensington
Frame rate60 fps
Warranty period5 year(s)
Ports & interfaces
InterfaceUSB/HDMI/Wi-Fi
HDMI input ports quantity1
HDMI output ports quantity1
USB connector typeMini-USB B, USB Type-A
USB 1.1 ports quantity1
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Camera
Effective sensor resolution13 MP
Optical sensor size25.4 / 3.2 mm (1 / 3.2")
Sensor typeCMOS
Supported graphics resolutions320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920
HD type4K Ultra HD
Maximum frame rate60 fps
Lens system
Auto focusYes
Optical zoom10x
Digital zoom23x
Shooting area (WxD)297 x 420 mm
*
*
*
Products specifications
Weight & dimensions
Width586 mm
Depth159 mm
Height554 mm
Weight2.8 kg
Dimensions folded (WxDxH)362 x 159 x 85 mm
Packaging data
Quantity per pack1 pc(s)
Power
Power consumption (typical)9.6 W
Power consumption (standby)0.5 W
Technical details
Product colourWhite
Control typeButtons
Display modesMicroscope, Motion
Anti-flickerYes
LED indicatorsYes
Cable lock slotYes
Cable lock slot typeKensington
Frame rate60 fps
Warranty period5 year(s)
Ports & interfaces
InterfaceUSB/HDMI/Wi-Fi
HDMI input ports quantity1
HDMI output ports quantity1
USB connector typeMini-USB B, USB Type-A
USB 1.1 ports quantity1
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Camera
Effective sensor resolution13 MP
Optical sensor size25.4 / 3.2 mm (1 / 3.2")
Sensor typeCMOS
Supported graphics resolutions320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920
HD type4K Ultra HD
Maximum frame rate60 fps
Lens system
Auto focusYes
Optical zoom10x
Digital zoom23x
Shooting area (WxD)297 x 420 mm
