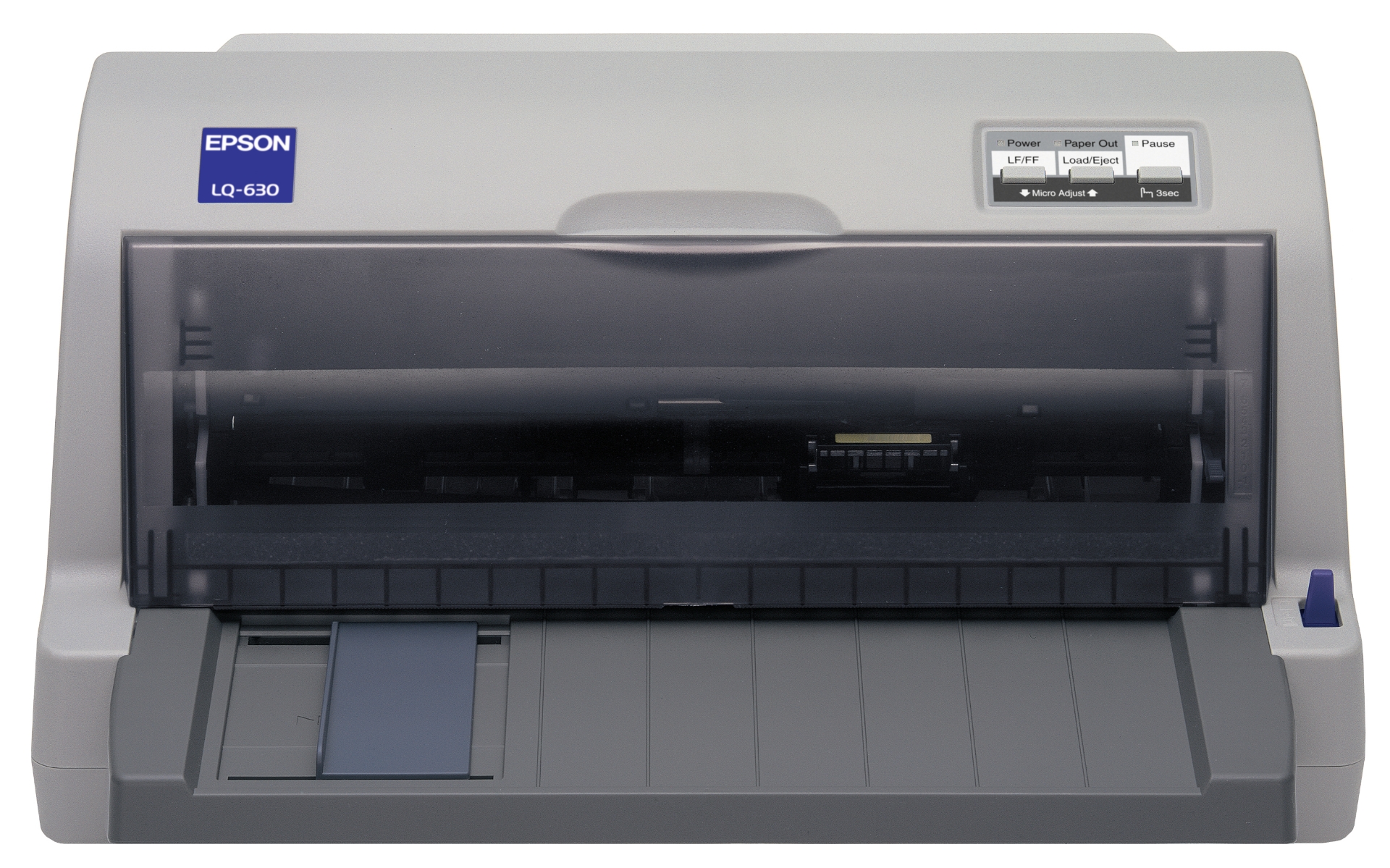

LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.
Key Features
- Fast print speed up to 360 cps
- Compact and robust design
- Handles up to 1 original plus 3 copies
- Flatbed technology for ergonomic front paper feed
- Mean Volume Between Failures: 12 mill. lines
- Standard Centronics Parallel and USB 2.0 Interfaces
Products specifications
| Product colour | Grey |
| Buffer size | 32 KB |
| Sound pressure level (printing) | 57 dB |
| Page description languages | Epson ESC/P2, PPDS |
| Country of origin | China |
| Width | 386 mm |
| Depth | 306 mm |
| Height | 185 mm |
| Weight | 3.5 kg |
| Standard media sizes | Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper |
| Print technology | Dot matrix |
| Needles | 24 |
| Products per pallet | 35 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross height | 100 cm |
| Products per pallet layer | 5 pc(s) |
| Products per pallet layer (UK) | 7 pc(s) |
| Products per pallet (UK) | 49 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 2 m |
| Harmonized System (HS) code | 84433210 |
| Quantity per pack | 1 pc(s) |
| Package width | 265 mm |
| Package depth | 455 mm |
| Package height | 310 mm |
| Package weight | 5.2 g |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 4.8 W |
| AC input voltage | 220 - 240 V |
| Standard interfaces | Parallel, USB 2.0 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP |
| Bundled software | Epson Status Monitor |
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 80 |
| Colour | No |
| Maximum print speed | 360 cps |
| Maximum print speed (draft) | 225 cps |
| Maximum print speed (LQ) | 79 cps |
| Character pitch | 10,12 cpi |
| Maximum number of copies | 5 copies |
| Built-in barcodes | Code 39, POSTNET, UPC-A, UPC-E |
| Maximum print size | 254 x 559 mm |
| Paper tray media types | Labels, Roll |
| Print head | 24-pin |
| Print direction | Bidirectional |
| Print head life | 400 million characters |
| Ribbon life (black, draft) | 2 million characters |
| Mean time between failures (MTBF) | 10000 h |
