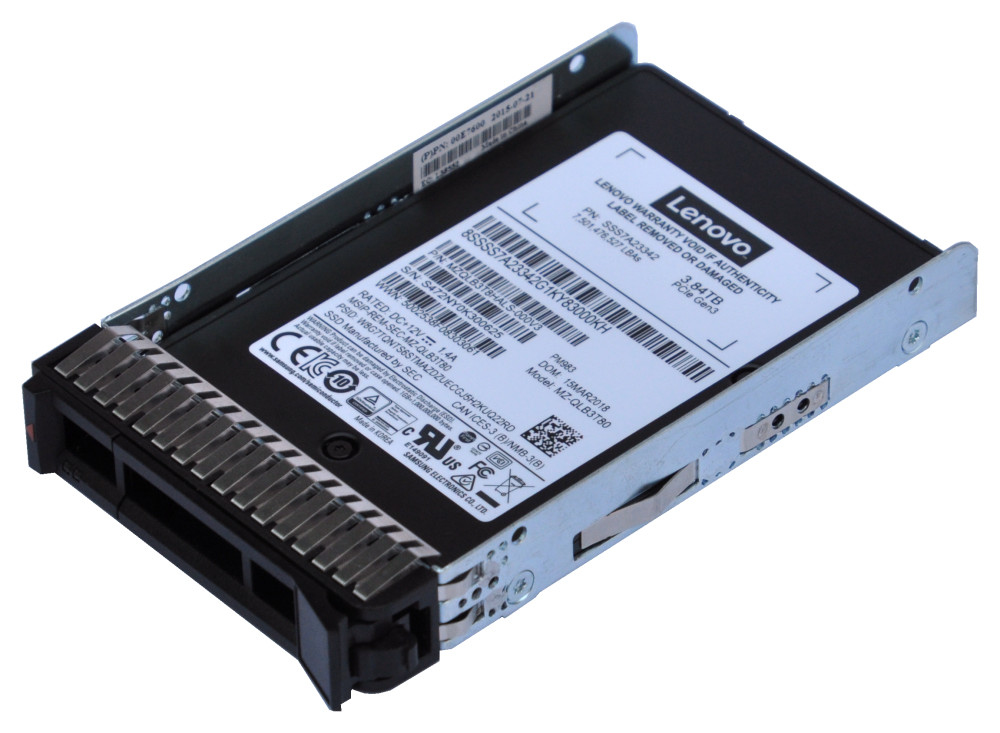

The Lenovo PM983 Entry NVMe PCIe solid-state drives (SSDs) in capacities from 1.92 TB to 7.68 TB are general-purpose yet high-performance NVMe PCIe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the NVMe Enterprise Value PCIe SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5" |
| Interface | U.2 |
| NVMe | Yes |
| Memory type | V-NAND |
| Component for | Server/workstation |
| Read speed | 3200 MB/s |
| Write speed | 2000 MB/s |
| Random read (4KB) | 540000 IOPS |
| Random write (4KB) | 50000 IOPS |
| Random latency - read (up to) | 85 µs |
| Random latency - write (up to) | 50 µs |
| Sequential latency - read (up to) | 15 µs |
| Sequential latency - write (up to) | 20 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 0.8 |
| Certification | UL, TUV, FCC, CE, C-Tick, BSMI, KCC |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Package width | 133 mm |
| Package depth | 174 mm |
| Package height | 63 mm |
| Package weight | 433 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Power consumption (read) | 8.7 W |
| Power consumption (write) | 10.6 W |
