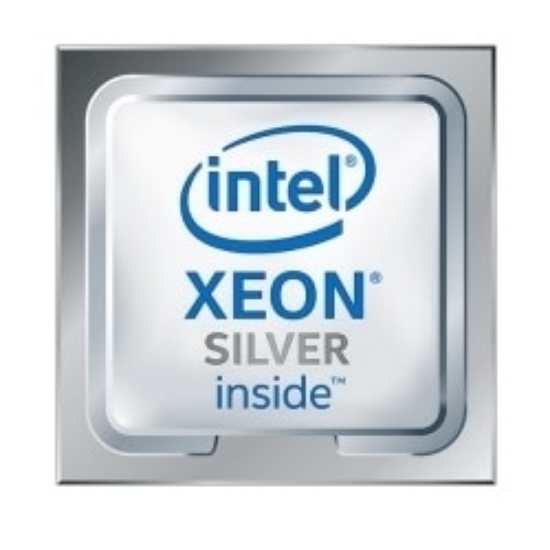

The Intel Xeon® Silver 4110 2.1 GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4110 2.1 GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Products specifications
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 2S |
| Embedded options available | Yes |
| Compatibility | PowerEdge C6420 PowerEdge FC640 PowerEdge M640 PowerEdge R440 PowerEdge R540 PowerEdge R640 PowerEdge R740 PowerEdge R740XD PowerEdge T440 PowerEdge T640 |
| Harmonized System (HS) code | 85423119 |
| Tcase | 77 °C |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4110 |
| Processor base frequency | 2.1 GHz |
| Processor family | Intel Xeon Silver |
| Processor cores | 8 |
| Processor socket | LGA 3647 (Socket P) |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor series | Intel Xeon Silver 4000 Series |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3 GHz |
| Processor cache | 11 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 85 W |
| Cooler included | No |
| Stepping | U0 |
| Bus type | UPI |
| Processor codename | Skylake |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| On-board graphics card | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
