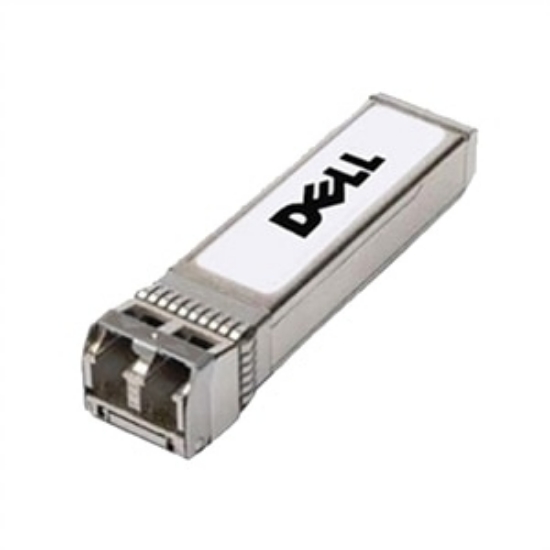

The Dell™ SFP transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a Duplex LC connector. The Dell networking 1000BASE SFP transceiver provides 1000BASE connectivity up to 500 m .
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Products specifications
| Hot-Plug support | Yes |
| Compatible products | - Dell Networking S5224F-ON - Dell Networking X1018 - PowerEdge R730XL - Dell Networking N2024 - PowerEdge VRTX - Dell Networking N3048ET-ON - Dell Networking N4032 - Dell Networking S4048T-ON - Dell Networking N3048 - PowerEdge R730xd XL - Dell Networking N4064F - Dell Networking C9010 - Dell Networking N2024P - Dell Networking S5212F-ON - PowerConnect M8024K - Dell Networking N2000 Series - PowerConnect 8100 - Dell Networking N1500 Series - PowerConnect 3548 - Dell Networking N4032F - Dell Networking N3000 Series - Dell Networking S6100 - Dell Networking S5248F-ON - Dell Networking N4064 - Dell Networking N3024F - PowerConnect 3524 - Dell Networking S5296F-ON - Dell Networking C1048P - Dell Networking N3024ET-ON - Dell Networking N3024EF-ON - PowerConnect 7024 - Dell Networking N2048P - Dell Networking N3048P - Dell Networking N3024 - Dell Networking Z9100 - Dell Networking S5232F-ON - Dell Networking N4000 Series - PowerConnect 7024F - Dell Networking N2048 - Dell Networking S4048-ON - Dell Networking X1026 - Dell Networking X1052 - Dell Networking N3024P - PowerEdge FX2 |
| Harmonized System (HS) code | 85369010 |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 1000BASE-SX |
| Quantity per pack | 1 pc(s) |
