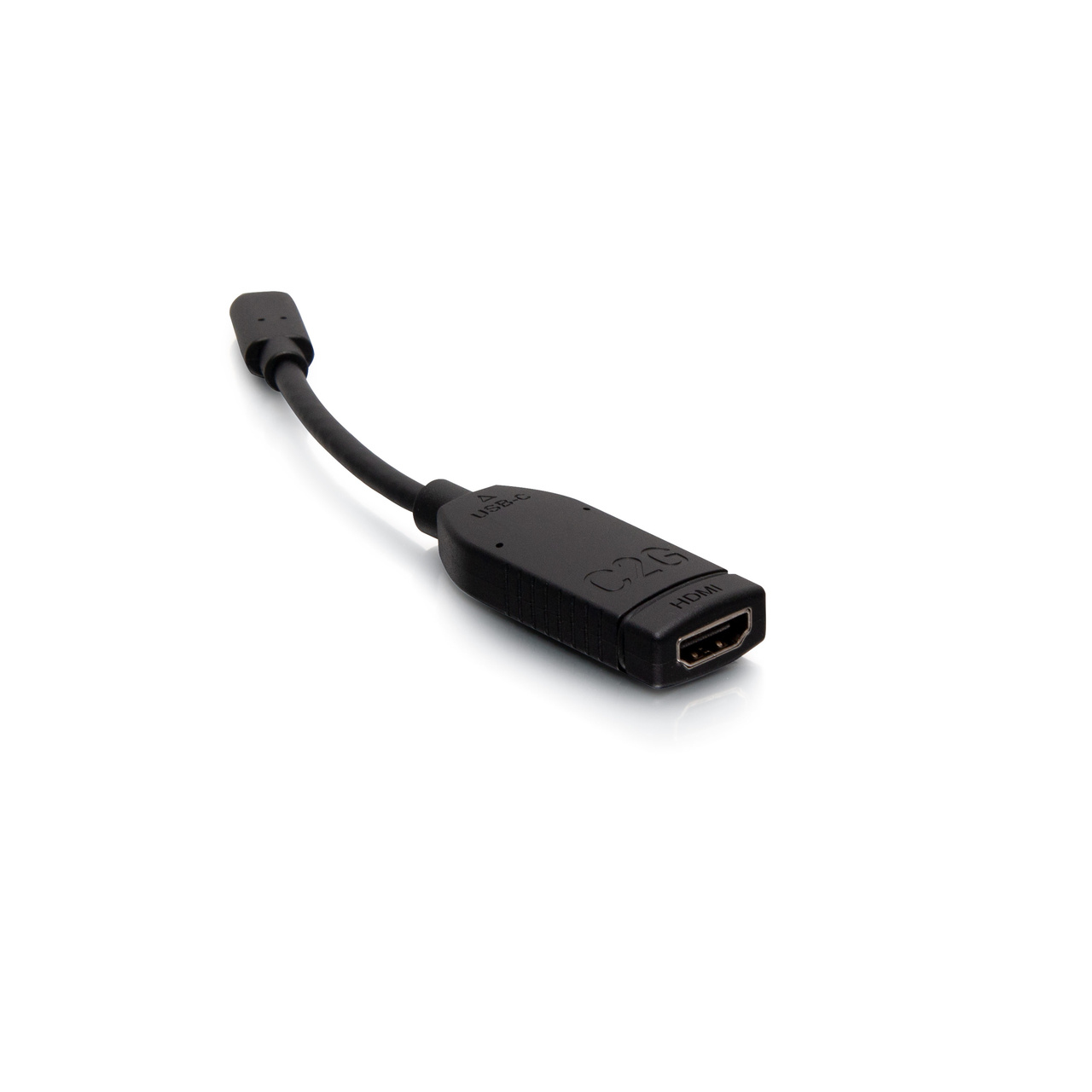

This USB-C to HDMI Dongle Adapter Converter is an easy and convenient solution for connecting an HDMI monitor to a USB-C computer in your home or office. This adapter converter carries a digital video signal, supports up to a 4K resolution and meets the requirements of high performance applications.
Avoid frustration by simply plugging the adapter into your computer, then attach to the existing HDMI cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.
This adapter converter automatically converts the digital USB-C signal to HDMI, supporting full HD up to a 4K resolution at 60Hz.
Additional Technical Specifications
SIGNAL SPECIFICATIONS
Testing: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
ELECTRICAL SPECIFICATIONS
USB-C to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)
PHYSICAL SPECIFICATIONS
Operating Temperature: 0°C - 40°C (0% - 90%RH)
Storage Temperature: -10°C - 60°C (0% - 90%RH)
PHYSICAL CHARACTERISTICS
HDMI 19pin Female Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
USB Type-C Male Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP Black, Shell: Nickel Plated
Adapter Hood: Molded Black (Pantone/#Black 6C) PVC
Color Band: Black (Pantone#Black 6C) 12 x 1.5mm
360º Solder to Connector Shell
Product is CE Marked and Conforms to 2011/65/EU ROHS 2
Products specifications
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Compliance certificates | CE, RoHS |
| Connector 1 | USB-C |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Quantity per pack | 1 pc(s) |
