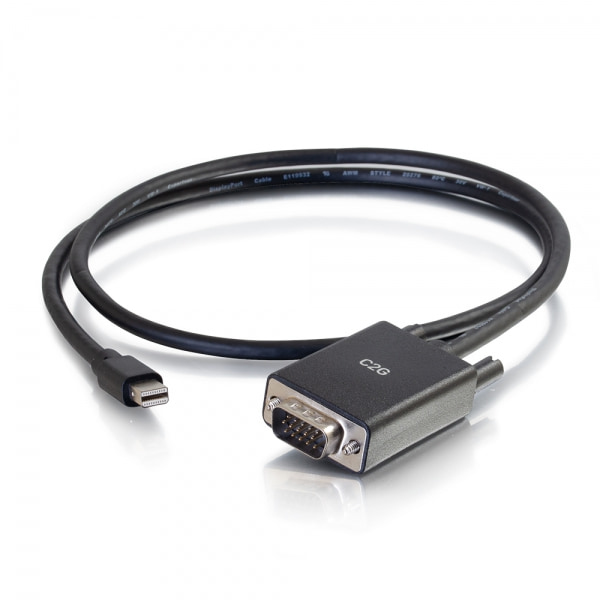

The Mini DisplayPort Male to VGA Male Active Adapter Cable allows you to connect the Mini DisplayPort or Thunderbolt[TM] 2 output of a PC or Mac[R] to a projector or display which accepts a VGA input ― making it an ideal solution for the office, work space applications, or home use.
[B]Convenience[/B]
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.
[B]Performance[/B]
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 1920 x 1200, allowing it to deliver a high quality video image to the connected display.
Products specifications
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel/Gold |
| Cable length | 1.8 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Voltage rating | 30 V |
| Product colour | Black |
| Impedance | 100 Ω |
| Chipset | RTD2166 |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Plug and Play | Yes |
| Connector gender | Male/Male |
| Weight | 100 g |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Compliance certificates | RoHS |
| Certification | CE |
| Quantity per pack | 1 pc(s) |
