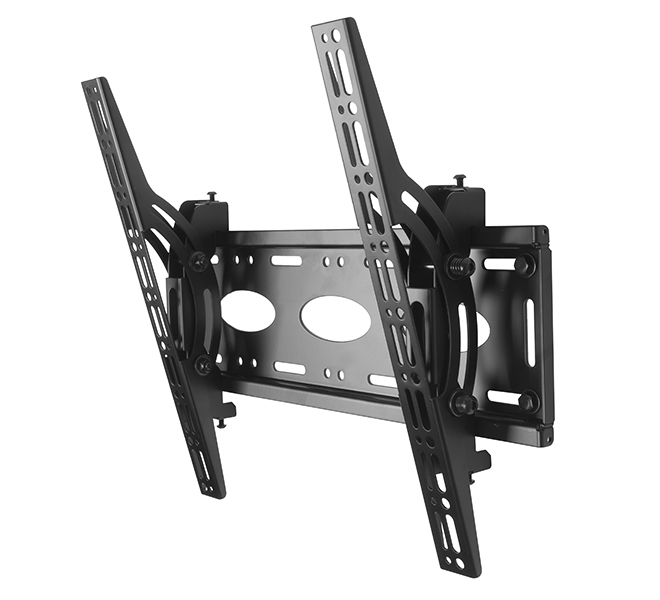

Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
Products specifications
| Width | 500 mm |
| Depth (min) | 2.1 cm |
| Depth (max) | 14.8 cm |
| Height | 420 mm |
| Master (outer) case gross weight | 8.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 83024200 |
| Master (outer) case volume | 28000 cm³ |
| Product colour | Black |
| Mounting kit | Yes |
| Tilt angle range | -15 - 15° |
| Distance to the wall (max) | 14.8 cm |
| Distance to the wall (min) | 8.1 cm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 99.1 cm (39") |
| Number of displays supported | 1 |
| Maximum screen size | 139.7 cm (55") |
| Maximum VESA mount | 400 x 400 mm |
| Mounting type | Wall |
