For screens up to 86"

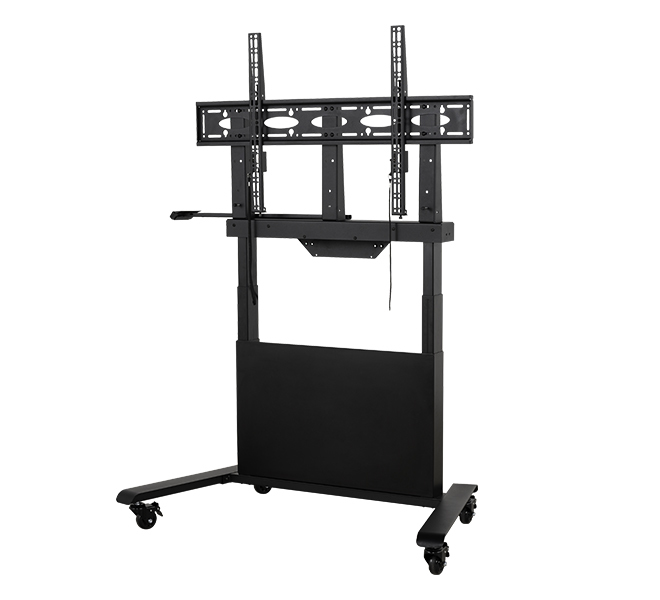

The BT8568 is a mobile solution designed to mount large screens up to 86". Electronic height adjustment enables effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm. This trolley is ideal for mounting interactive touchscreens into education and corporate environments and is capable of supporting loads up to 100kg. The mount has a modern design and features a simple hook-on installation for quick and easy screen fitting and incorporates an adaptor plate for the fitting of AV accessory shelves.
Products specifications
| Width | 1255 mm |
| Depth | 740 mm |
| Height | 1360 mm |
| Compliance certificates | cTUVus |
| Certification | TUV |
| Harmonized System (HS) code | 94039010 |
| Housing material | Metal |
| Product colour | Black |
| Easy to install | Yes |
| Base type | H-shaped |
| Mounting kit | Yes |
| Manual | Yes |
| Adjustable shelves | Yes |
| Number of wheels | 4 wheel(s) |
| Cable management | Yes |
| Maximum weight capacity | 100 kg |
| Minimum screen size | 139.7 cm (55") |
| Number of displays supported | 1 |
| Maximum screen size | 2.18 m (86") |
| Suitable for TV | Yes |
| Mounting type | Floor |
| Maximum VESA mount | 1000 x 600 mm |
| Panel mounting interface | 1000 x 600 mm |
