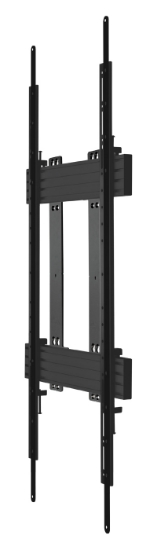

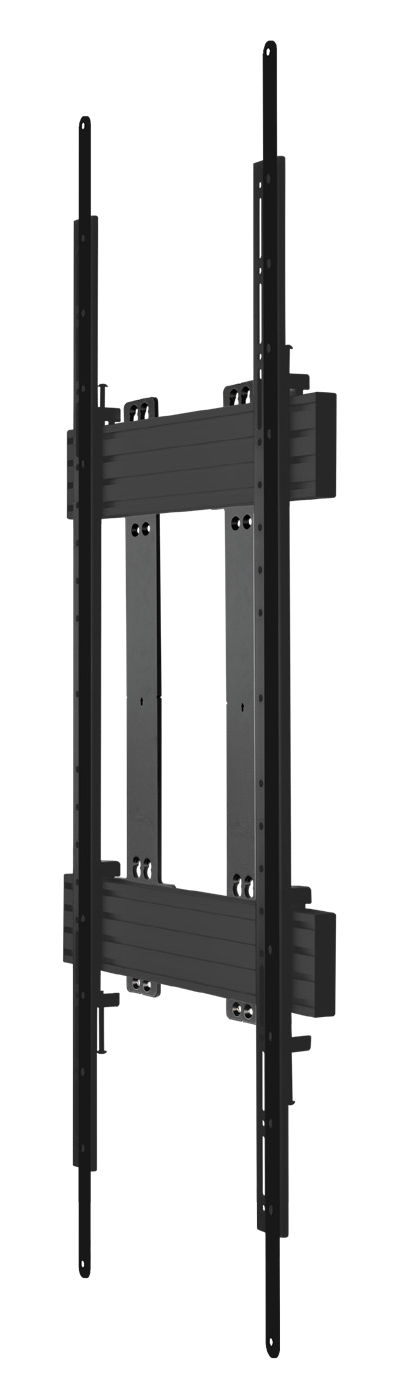

The BT9923 is designed to mount XL ultrawide displays to a wall in portrait orientation. The mount is supplied with adaptor arms with vertical vesa fixings up to 1500mm; making it compatible with a wide selection of 21:9 ratio ultrawide displays. The low profile design mounts the display at a depth of 57.5mm (with adaptors) from the wall for a neat and tidy install whilst also allowing easy access to the connectors.
Products specifications
| Harmonized System (HS) code | 94039010 |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Compliance certificates | cTUVus |
| Type | Fixed |
| Product colour | Black |
| Adjustable depth | Yes |
| Housing material | Steel |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Certification | TUV |
| Maximum weight capacity | 200 kg |
| Minimum screen size | 2.67 m (105") |
| Maximum screen size | 3.05 m (120") |
| Mounting type | Wall |
| Minimum VESA mount | 1000 x 400 mm |
| Maximum VESA mount | 1500 x 600 mm |
| Panel mounting interface | 1000 x 400,1000 x 600,1500 x 600 |
| Number of displays supported | 1 |
