Connect BT8390 Rails to BT8380 Columns

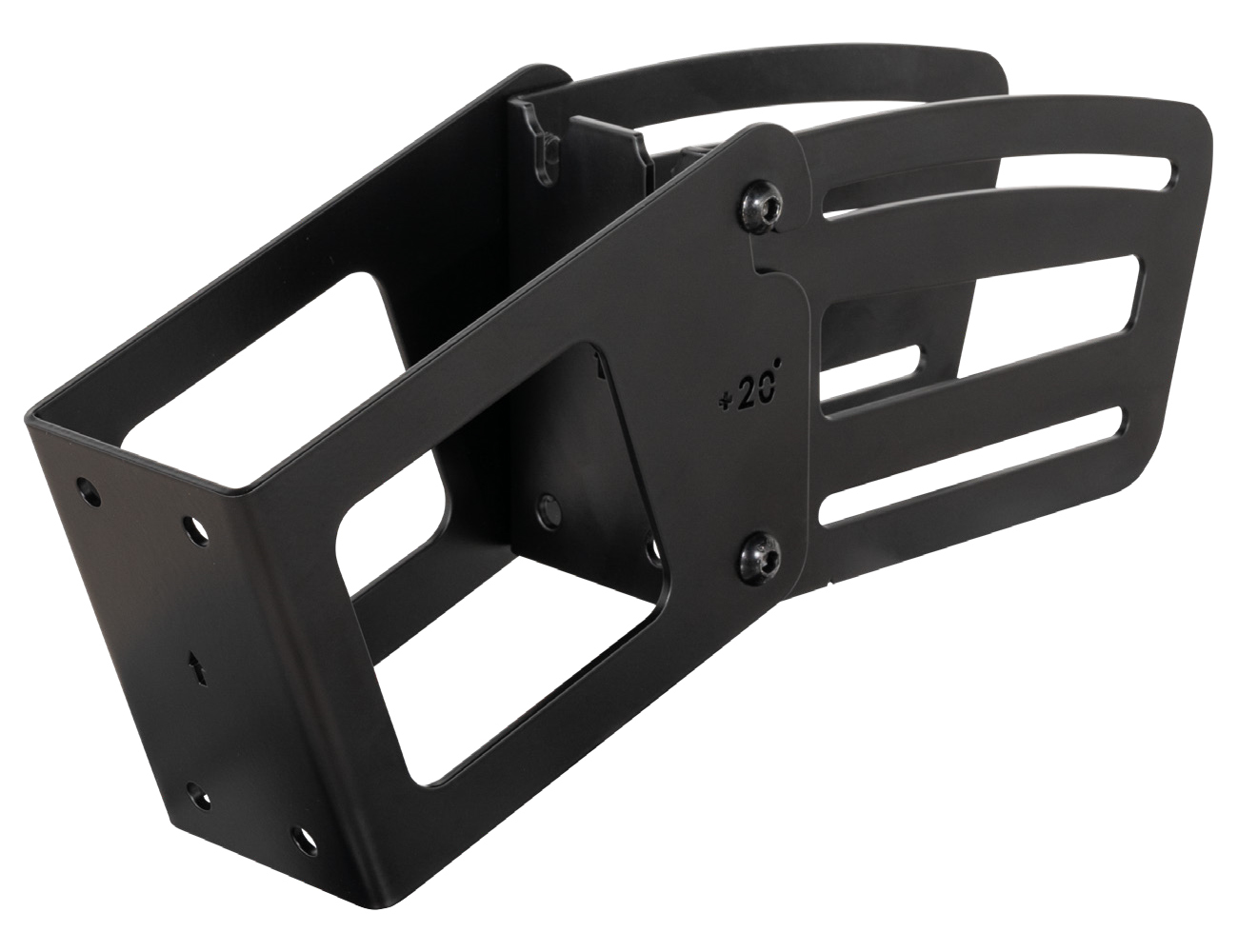

BT8380-JPT is a joining plate that connects System X BT8390 mounting rails to BT8380 vertical columns. The adjustable tilt enables rails to be tilted up to 30°, ensuring that the row of screens aligns precisely with the screens below. Joining plates with tilt are ideal for applications such as broadcasting and security control rooms where the top row of screens needs to be tilted and aligned to the screens below. The Plates can be positioned at any height on the column or along the rail to suit the application. Angle and distance guides feature on the plate to assist in a quick and straightforward installation.
Products specifications
| Product type | Column mount |
| Product colour | Black |
| Housing material | Metal |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 1 |
| Tilt angle range | -30 - 30° |
| Compatibility | BT8390, BT8380 |
| Width | 335.8 mm |
| Depth | 120 mm |
| Height | 188.7 mm |
| Compliance certificates | cTUVus |
| Certification | TUV |
| Harmonized System (HS) code | 83024200 |
| Quantity per pack | 1 pc(s) |
| Screws included | Yes |
| Manual | Yes |
