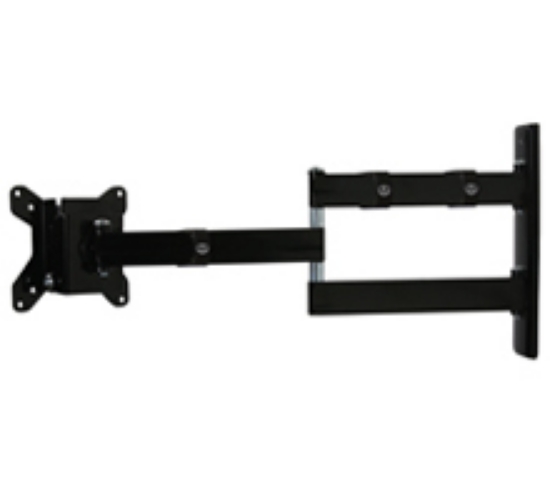

Double Arm Flat Screen Wall Mount with Tilt and Swivel
- Designed for small flat screens up to 23” (58cm) / 15kg (33lbs)
- Fits screens with VESA mounting patterns:
- 75mm x 75mm and 100mm x 100mm
- Easy tilt adjustment +17°/ -10°
- Features 3 swivel points: 180° at wall, 360° at central pivot point, 240° at interface
- CLIPLOGIC® cable management included
- 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
- Security locking screws & Allen key provided for secure installation
- Features ‘OWLS’™ On Wall Levelling System
- Simple ‘hook-on’ installation with all mounting hardware included
Products specifications
| Harmonized System (HS) code | 83024200 |
| Product colour | Black |
| Height adjustment | No |
| Tilt angle range | -10 - 17° |
| Swivel angle | 360° |
| Distance to the wall (max) | 46.7 cm |
| Distance to the wall (min) | 9.5 cm |
| Maximum weight capacity | 15 kg |
| Number of displays supported | 1 |
| Maximum screen size | 58.4 cm (23") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
