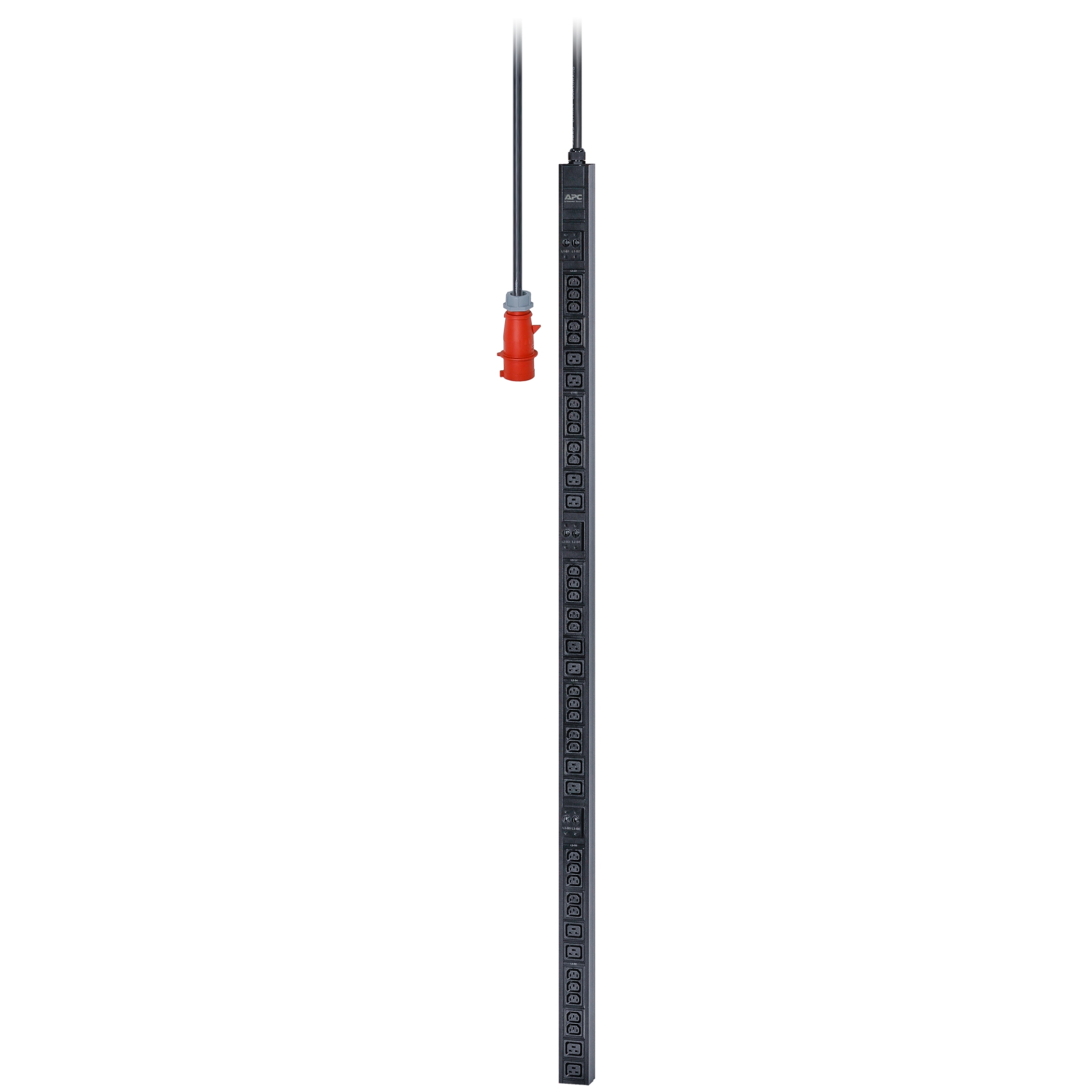

Picture of APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet

Name: APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet
SKU: EPDU1232B
Price: 825.06 EUR
Availability: InStock

Be the first to review this product

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet. PDU types: Basic, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 2 m. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Certification: CE, TUV

Manufacturer: Apc

SKU: EPDU1232B

Vendor: Aspects

APC Easy Basic Rack PDU EPDU1232B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1216B has IEC 309 32A 3P+N+E type inlet, Thirty IEC C13 and twelve IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€825.06 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Features
Cable length	2 m
Weight & dimensions
Width	62 mm
Depth	44 mm
Height	1794 mm
Weight	5.14 kg
Logistics data
Total carbon footprint (kg of CO2e)	127.67
Packaging data
Package weight	6.2 kg
Package width	160 mm
Package depth	110 mm
Package height	1950 mm
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Power
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22080 VA
Maximum input current per phase	32 A
Maximum power	22000 W
Certificates
Certification	CE, TUV
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Design
PDU types	Basic
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Packaging content
Manual	Yes

Your name *

Your email *

Enquiry *

Products specifications

Features
Cable length	2 m
Weight & dimensions
Width	62 mm
Depth	44 mm
Height	1794 mm
Weight	5.14 kg
Logistics data
Total carbon footprint (kg of CO2e)	127.67
Packaging data
Package weight	6.2 kg
Package width	160 mm
Package depth	110 mm
Package height	1950 mm
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Power
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22080 VA
Maximum input current per phase	32 A
Maximum power	22000 W
Certificates
Certification	CE, TUV
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Design
PDU types	Basic
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Packaging content
Manual	Yes
